PRBSA1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

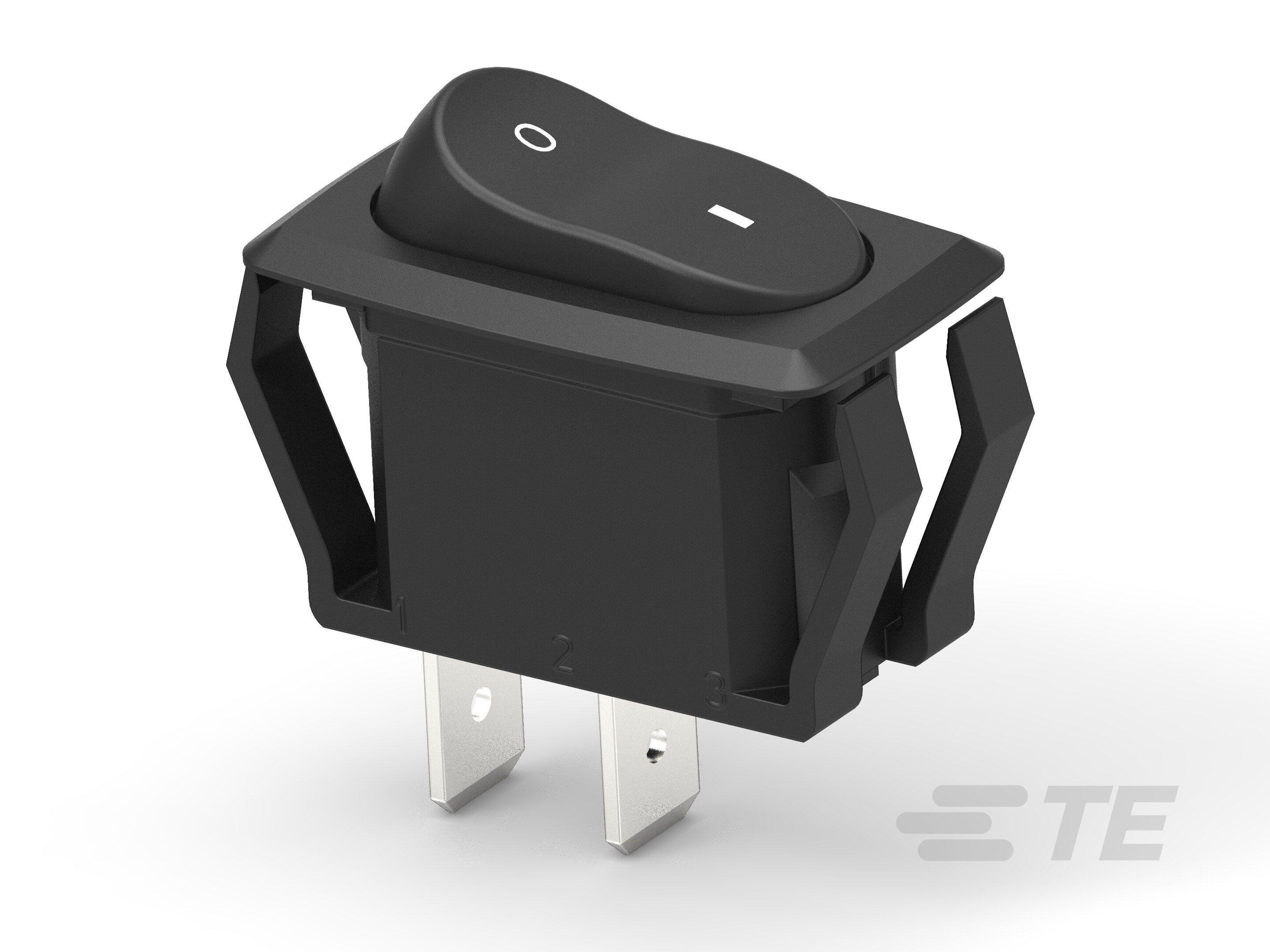

SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 16A 250VAC 372.85VA >100000CYCLES
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Approval Agency | Color - Actuator/Cap | Actuator Type | Voltage Rating - AC | Mounting Type | Circuit | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | 27.6 mm | 13.8 mm | 16 A | UL | Black | Concave (Curved) | 125 V | Panel Mount Snap-In | SPST | On-Off | 85 °C | -20 ░C | ON OFF | Quick Connect - 0.250" (6.3mm) |
 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | 27.6 mm | 13.8 mm | 16 A | UL | Black | Concave (Curved) | 125 V | Panel Mount Snap-In | SPST | On-Off | 85 °C | -20 ░C | O - | Quick Connect - 0.250" (6.3mm) |
