RC6-2 Series

Catalog

TEM 23.5X23.5X3.94MM

Part	Resistance	Height [z]	Voltage - Max [Max]	Current - Max [Max]	Qmax @ Th	Number of Stages	Delta Tmax @ Th	Type	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]	Features

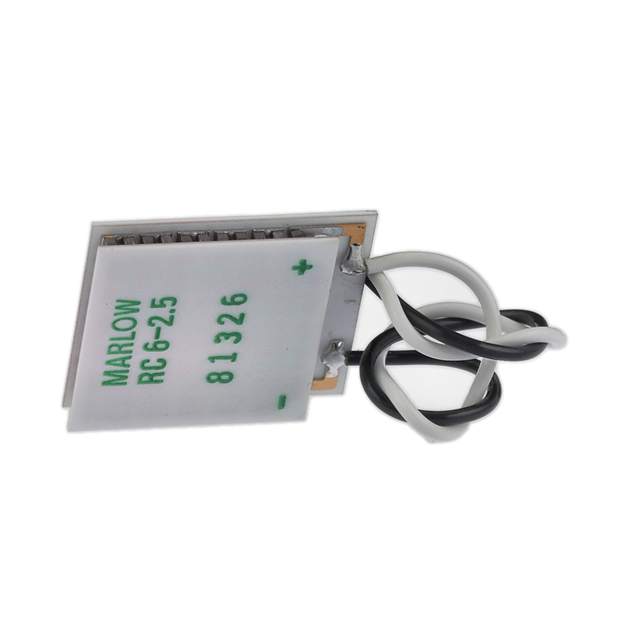

Marlow Industries, Inc. RC6-2.5-01	2.8 Ohms	4.04 mm	8.2 V	2.5 A	13 W	1	65 °C	TEC (Thermoelectric Cooler)	130 °C	27.9 mm	23.5 mm	Lead Wires

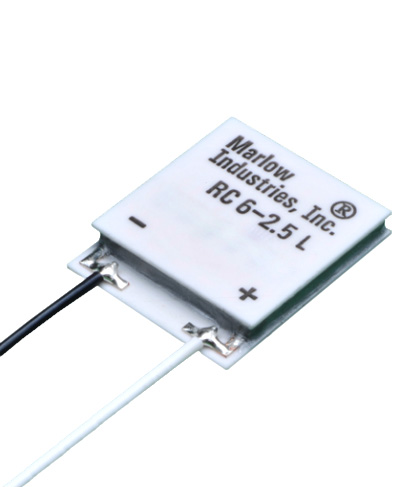

Marlow Industries, Inc. RC6-2.5-01LS	2.8 Ohms	3.94 mm	8.2 V	2.5 A	13 W	1	65 °C	TEC (Thermoelectric Cooler)	130 °C	27.9 mm	23.5 mm	Lapped Lead Wires Sealed
Marlow Industries, Inc. RC6-2.5-01S	2.8 Ohms	4.04 mm	8.2 V	2.5 A	13 W	1	65 °C	TEC (Thermoelectric Cooler)	130 °C	27.9 mm	23.5 mm	Lead Wires Sealed
Marlow Industries, Inc. RC6-2.5-01L	2.8 Ohms	3.94 mm	8.2 V	2.5 A	13 W	1	65 °C	TEC (Thermoelectric Cooler)	130 °C	27.9 mm	23.5 mm	Lapped Lead Wires
