950408 Series

Catalog

CONN RCPT 8P 0.079 GOLD SMD R/A

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Color	Number of Rows [custom]	Contact Finish - Mating	Termination	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height [z]
3M Electronic Specialty 950408-8200-AR-TR	40 Áin	1.02 Ám	Copper Alloy	Square	Thermoplastic	Right Angle Surface Mount	All	4.9 mm	0.193 "	UL94 V-0	Flash	2 mm	0.079 in	Tin	Black	2	Gold	Solder	Receptacle	0.079 "	2 mm	8	Push-Pull	-40 C	105 ░C	1000 VDC	Female Socket

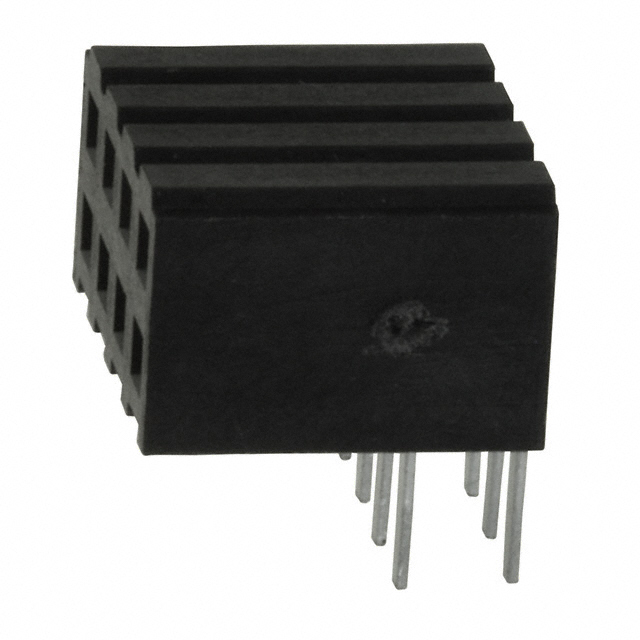

3M Electronic Specialty 950408-5002-AR	40 Áin	1.02 Ám	Copper Alloy	Square	Thermoplastic	Right Angle Through Hole	All	4.85 mm		UL94 V-0	Flash	2 mm	0.079 in	Tin	Black	2	Gold	Solder	Receptacle	0.079 "	2 mm	8	Push-Pull	-40 C	105 ░C	1000 VDC	Female Socket	0.118 in	3 mm	0.191 in
