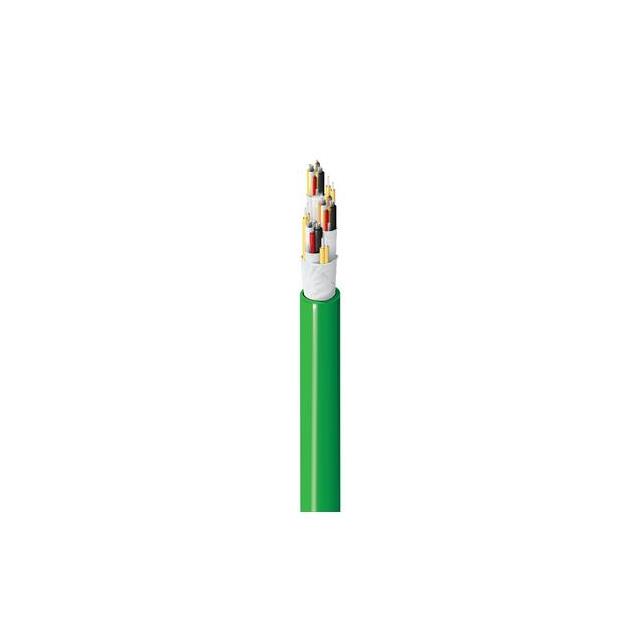

7824R Series
Manufacturer: Belden Inc.
Beta
⌘K
COMPOSITE CAMERA CABLE
| Part | Shield Material | Shield Coverage | Number of Conductors [custom] | Number of Conductors [custom] | Ratings | Voltage | Wire Gauge | Shield Type | Cable Type | Jacket (Insulation) Material | Jacket Color | Features | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester | 100 % | 3 | 6 | UL Style CMR | 300 VDC | 18 AWG 24 AWG | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Green | Drain Wire | 30 32 | 7 19 | Poly-Vinyl Chloride (PVC) | Copper Tinned | -20 ░C | 60 °C | 2000 ft | 609.6 m | ||
Belden Inc. | Aluminum Polyester | 100 % | 3 | 6 | UL Style CMR | 300 VDC | 18 AWG 24 AWG | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Green | Drain Wire | 30 32 | 7 19 | Poly-Vinyl Chloride (PVC) | Copper Tinned | -20 ░C | 60 °C | 304.8 m | 1000 ft |
