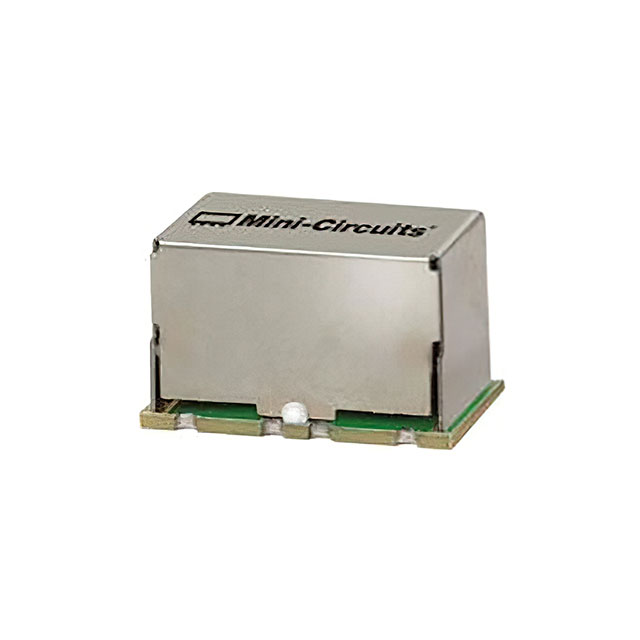

SYPS Series
Manufacturer: Mini-Circuits
Beta
⌘K
SIGNAL CONDITIONING PWR SPLTR CMBD / SM / ROHS
| Part | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Frequency [Max] | Frequency [Min] | Insertion Loss | Specifications [Max] | Specifications [Min] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 8-SMD No Lead | 0.25 " | 0.38 " | 0.5 " | 6.35 mm | 12.7 mm | 9.65 mm | 3 GHz | 400 MHz | 1 dB | 1.85 VSWR 7 ° | 14 dB | ||
 Mini-Circuits | 8-SMD No Lead | 0.415 " | 0.433 in | 0.69 in | 17.53 mm | 540 MHz | 10 MHz | 0.5 dB | 1.9 VSWR 5 ° | 18 dB | 10.54 mm | 11 mm |
