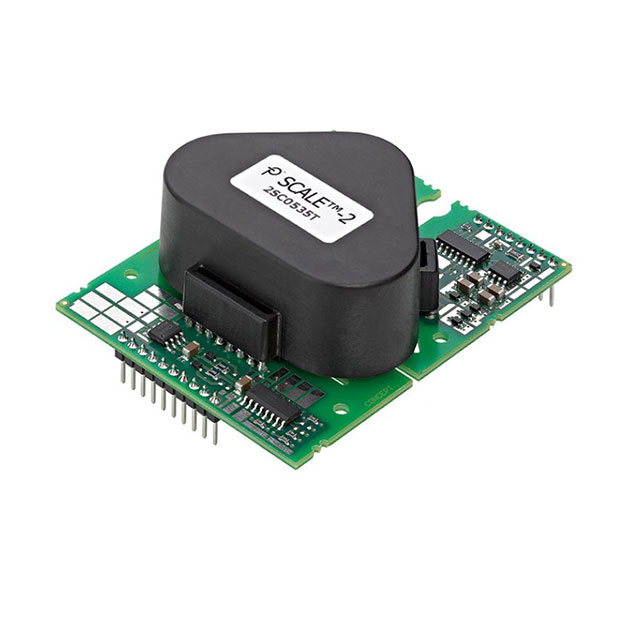

2SC0535 Series
Manufacturer: POWER INTEGRATIONS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC GATE DRVR HI/LOW SIDE MODULE
| Part | Gate Type | Channel Type | Package Name | Number of Drivers | Operating Temperature (Max) | Operating Temperature (Min) | Driven Configuration | Current - Peak Output (Sink) | Current - Peak Output (Source) | High Side Voltage - Max (Bootstrap) | Rise Time (Typ) | Fall Time (Typ) | Package / Case | Mounting Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | IGBT | Independent | Module | 2 | 85 °C | -55 °C | High-Side Low-Side | 35 A | 35 A | 3300 V | 20 ns | 25 ns | Module | Surface Mount | 14.5 V | 15.5 V |
 POWER INTEGRATIONS | IGBT | Independent | Module | 2 | 85 °C | -40 °C | High-Side Low-Side | 35 A | 35 A | 3300 V | 20 ns | 25 ns | Module | Surface Mount | 14.5 V | 15.5 V |
