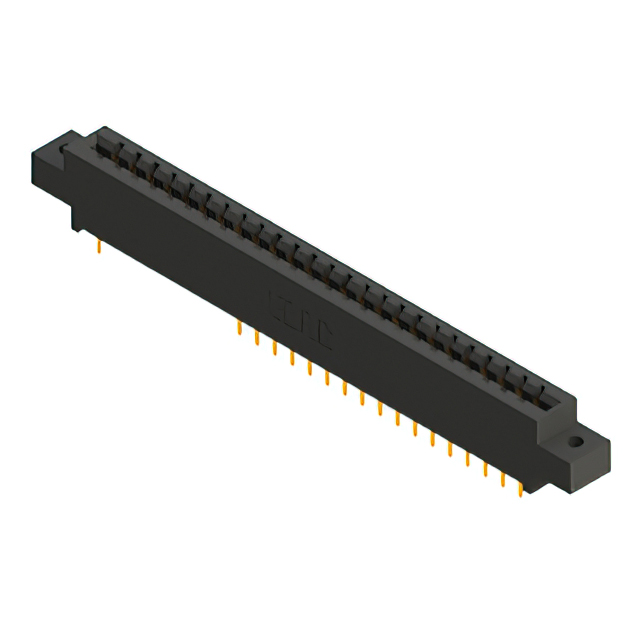

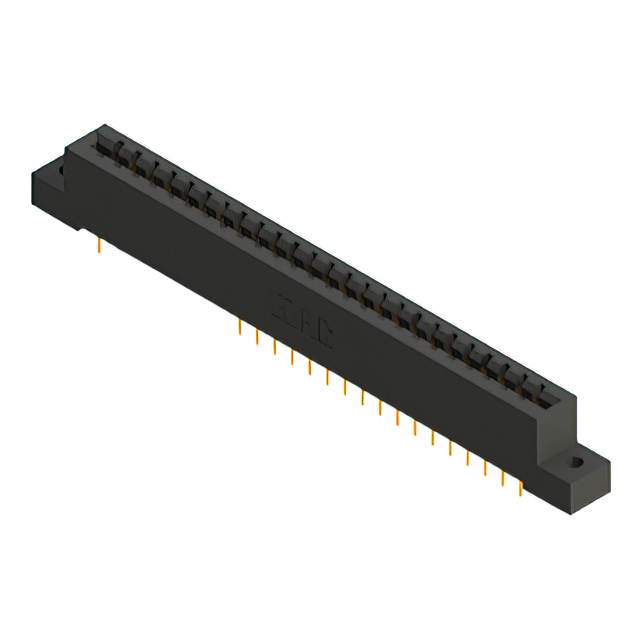

387-050 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 50POS 0.156
...
| Part | Gender | Contact Finish | Number of Positions | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Number of Rows | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | Card Extender | ||||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | Card Extender | ||||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Wire Wrap | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | ||||||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | Card Extender | ||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
 EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Wire Wrap | Through Hole Right Angle | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 |
