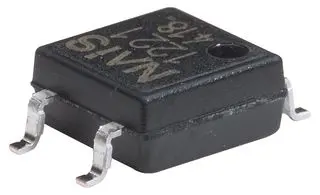

APT1211 Series

Manufacturer: Panasonic Electronic Components

Catalog

OPTOCOUPLER, TRIAC OUTPUT, SOP, 4 PINS, 3.75 KV, ZERO CROSSING, 600 V

Part	Current - DC Forward (If) (Max) [Max]	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Isolation	Approval Agency	Voltage - Forward (Vf) (Typ)	Static dV/dt (Min) [Min]	Number of Channels [custom]	Mounting Type	Turn On Time [Max]	Voltage - Off State	Current - Hold (Ih)	Current - On State (It (RMS)) (Max) [Max]	Output Type	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]
Panasonic Electronic Components APT1211S	50 mA	10 mA	3750 Vrms	cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	50 mA	Triac	4-SMD Gull Wing	4-SOP	-40 C	100 °C
Panasonic Electronic Components APT1211AX	50 mA	10 mA		cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	100 mA	Triac	4-SMD Gull Wing	4-DIP Gull Wing	-40 C	100 °C
Panasonic Electronic Components APT1211SX	50 mA	10 mA	3750 Vrms	cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	50 mA	Triac	4-SMD Gull Wing	4-SOP	-40 C	100 °C
Panasonic Electronic Components APT1211S
Panasonic Electronic Components APT1211A	50 mA	10 mA		cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	100 mA	Triac	4-SMD Gull Wing	4-DIP Gull Wing	-40 C	100 °C
Panasonic Electronic Components APT1211AZ	50 mA	10 mA		cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	100 mA	Triac	4-SMD Gull Wing	4-DIP Gull Wing	-40 C	100 °C
Panasonic Electronic Components APT1211WA	50 mA	10 mA		cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	100 mA	Triac	4-SMD Gull Wing	4-DIP Gull Wing	-40 C	100 °C
Panasonic Electronic Components APT1211W	50 mA	10 mA		cUR VDE	1.21 V	500 V/µs	1	Through Hole	100 µs	600 V	3.5 mA	100 mA	Triac	4-DIP (0.400" 10.16mm)	4-DIP	-40 C	100 °C
Panasonic Electronic Components APT1211SZ	50 mA	10 mA	3750 Vrms	cUR VDE	1.21 V	500 V/µs	1	Surface Mount	100 µs	600 V	3.5 mA	50 mA	Triac	4-SMD Gull Wing	4-SOP	-40 C	100 °C
