562R Series

Catalog

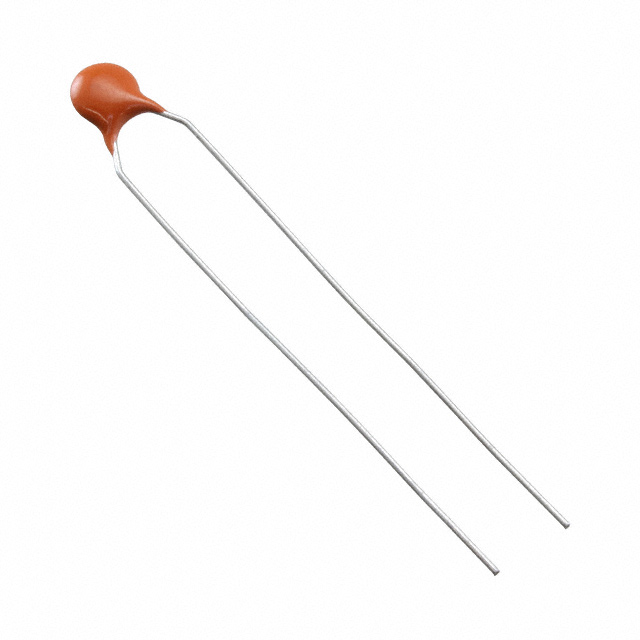

CERAMIC DISC CAPACITOR, 470 PF, 100 V, ± 10%, X7R, 5 MM, RADIAL LEADED

Part	Height - Seated (Max)	Lead Style	Temperature Coefficient	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Tolerance	Applications	Capacitance	Mounting Type	Size / Dimension Diameter	Lead Spacing
Vishay Dale 562RTST47	0.25 in	Straight	X7R	100 VAC/DC	125 °C	-55 °C	Disc Radial	10 %	General Purpose	470 pF	Through Hole	0.25 in	0.2 in
Vishay Dale 562R5GAT50QA	0.377 in	Formed Leads Straight	X5F	1000 V	105 °C	-55 °C	Disc Radial	20 %	General Purpose	500 pF	Through Hole	0.252 in	0.252 in
Vishay Dale 562R10TST10	0.377 in	Formed Leads Straight	X5F	1000 V	105 °C	-55 °C	Disc Radial	10 %	General Purpose	100 pF	Through Hole	0.252 in	0.252 in
Vishay Dale 562R10TST47RE	0.377 in	Formed Leads Straight	X5F	1000 V	105 °C	-55 °C	Disc Radial	10 %	General Purpose	470 pF	Through Hole	0.252 in	0.252 in
Vishay Dale 562R5GAD50RE	0.495 in	Straight	Z5U	1000 V	105 °C	-55 °C	Disc Radial	20 %	General Purpose	5000 pF	Through Hole	0.37 in	0.252 in
Vishay Dale 562R10TSD33	0.684 in	Formed Leads	X5F	1000 V	105 °C	-55 °C	Disc Radial	10 %	General Purpose	3300 pF	Through Hole	0.559 in	0.374 in
Vishay Dale 562R5GAD12	0.417 in	Formed Leads	Z5U	1000 V	105 °C	-55 °C	Disc Radial	20 %	Bypass Decoupling	1200 pF	Through Hole	0.291 in	0.252 in
Vishay Dale 562R5GAT22	0.377 in	Formed Leads	X5F	1000 V	105 °C	-55 °C	Disc Radial	10 %	General Purpose	220 pF	Through Hole	0.252 in	0.252 in
Vishay Dale 562R10TST50	0.377 in	Formed Leads	X5F	1000 V	105 °C	-55 °C	Disc Radial	10 %	General Purpose	500 pF	Through Hole	0.252 in	0.252 in
Vishay Dale 562R10TST68	0.417 in	Formed Leads Straight	X5F	1000 V	105 °C	-55 °C	Disc Radial	10 %	General Purpose	680 pF	Through Hole	0.291 in	0.252 in
