3221-14 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN SHROUDED HEADER (4 SIDES) HDR 14 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R
| Part | Contact Finish Thickness - Post | Voltage Rating | Connector Type | Current Rating (Amps) | Mounting Type | Shrouding | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Contact Type | Contact Finish Thickness - Mating | Number of Positions Loaded | Insulation Material | Contact Finish - Mating | Fastening Type | Contact Shape | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Contact Material | Style | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Features | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

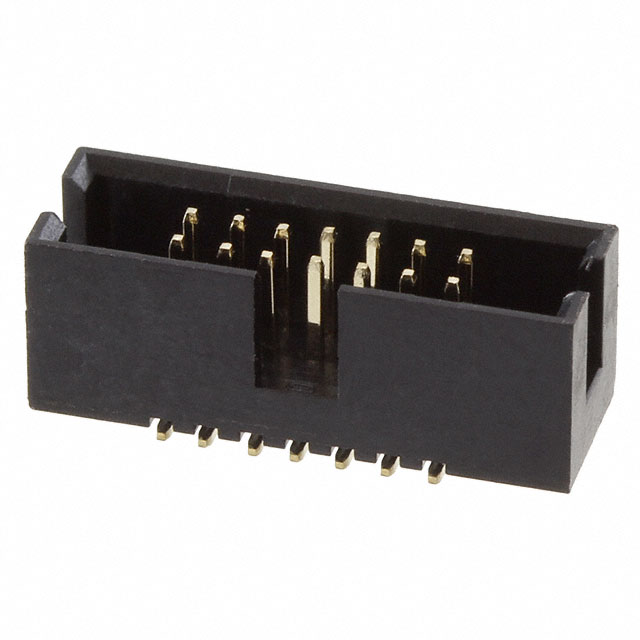

 CNC Tech | Flash | 50 VAC | Header | 1 A | Surface Mount | Shrouded - 4 Wall | Solder | 1.27 mm | 0.05 in | UL94 V-0 | 14 | 0.05 in | 1.27 mm | 2 | Male Pin | Flash | All | Nylon 9T Polyamide (PA9T) | Gold | Push-Pull | Square | 0.213 " | 5.4 mm | Gold | Brass | Board to Cable/Wire | Black | -40 C | 105 ░C | Keying Slot Pick and Place | ||||
 CNC Tech | Flash | 50 VAC | Header | 1 A | Surface Mount | Shrouded - 4 Wall | Solder | 1.27 mm | 0.05 in | UL94 V-0 | 14 | 0.05 in | 1.27 mm | 2 | Male Pin | Flash | All | Nylon 9T Polyamide (PA9T) | Gold | Push-Pull | Square | 0.213 " | 5.4 mm | Gold | Brass | Board to Cable/Wire | Black | -40 C | 105 ░C | Keying Slot | ||||

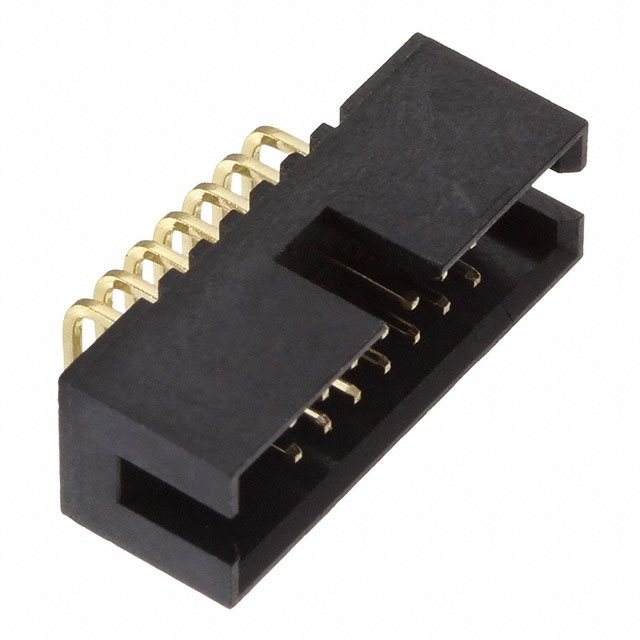

 CNC Tech | Flash | 50 VAC | Header | 1 A | Right Angle Through Hole | Shrouded - 4 Wall | Solder | 1.27 mm | 0.05 in | UL94 V-0 | 14 | 0.05 in | 1.27 mm | 2 | Male Pin | Flash | All | Nylon 9T Polyamide (PA9T) | Gold | Push-Pull | Square | Gold | Brass | Board to Cable/Wire | Black | -40 C | 105 ░C | Keying Slot | 0.201 in | 5.1 mm | 0.083 in | 2.11 mm | ||

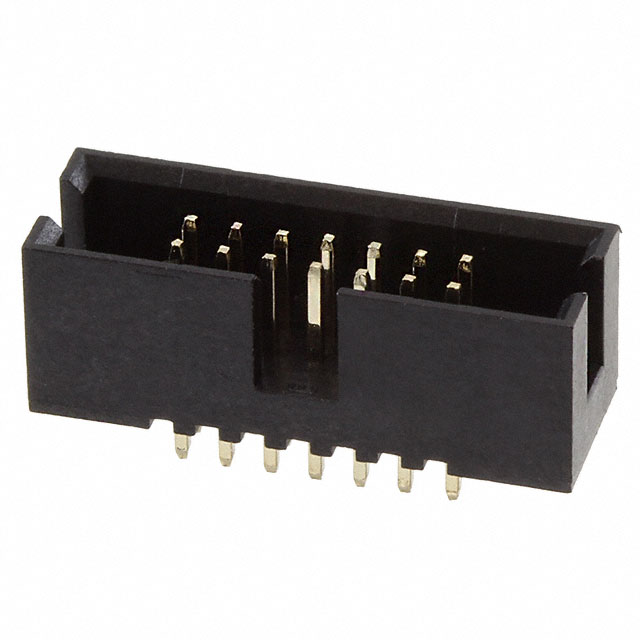

 CNC Tech | Flash | 50 VAC | Header | 1 A | Through Hole | Shrouded - 4 Wall | Solder | 1.27 mm | 0.05 in | UL94 V-0 | 14 | 0.05 in | 1.27 mm | 2 | Male Pin | Flash | All | Nylon 9T Polyamide (PA9T) | Gold | Push-Pull | Square | 0.213 " | 5.4 mm | Gold | Brass | Board to Cable/Wire | Black | -40 C | 105 ░C | Keying Slot | 0.083 in | 2.11 mm |
