3811 Series

Catalog

CBL RIBN 26COND 0.05 MULTI 10'

Part	Insulation Resistance	Conductor Material	Jacket (Insulation) Material	Jacket Color	Length	Number of Conductors	Wire Gauge	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Pitch	Pitch	Cable Type	Features	Shielding	Number of Conductors [custom]	Number of Conductors [custom]
3M Electronic Specialty 3811/26 100	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple	Enter Number of Feet in Order Quantity	26	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	1.07 mm	0.042 in	50 ft	15.24 m	300 VDC	1.3 in	33.02 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
3M Electronic Specialty 3811/37 300'	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple		37	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	3600 in	91440 mm	1.07 mm	0.042 in			300 VDC	1.85 in	46.99 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded

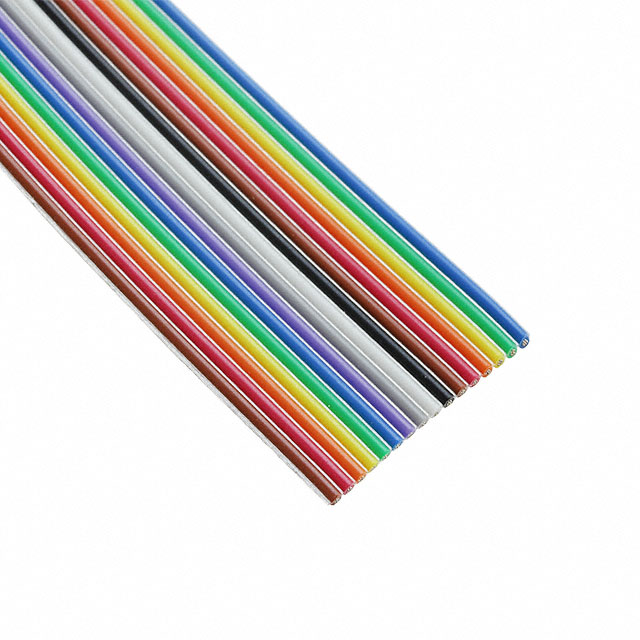

3M Electronic Specialty 3811/16 100	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple	Enter Number of Feet in Order Quantity	16	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	1.07 mm	0.042 in	50 ft	15.24 m	300 VDC	0.8 in	20.32 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
3M Electronic Specialty 3811/50 100	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple	Enter Number of Feet in Order Quantity	50	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	1.07 mm	0.042 in	50 ft	15.24 m	300 VDC	2.5 in	63.5 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
3M Electronic Specialty 3811/64	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple			26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	3600 in	91440 mm	1.07 mm	0.042 in			300 VDC	3.2 in	81.28 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded	64
3M Electronic Specialty 3811/24 300	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple		24	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	3600 in	91440 mm	1.07 mm	0.042 in			300 VDC	1.2 in	30.48 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
3M Electronic Specialty 3811/37 100	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple		37	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	1.07 mm	0.042 in	50 ft	15.24 m	300 VDC	1.85 in	46.99 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
3M Electronic Specialty 3811/10 300	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple			26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	1 ft 10 ft 25 ft 100 ' 3600 in	3.05 m 7.62 m 30.48 m 304.8 mm 91440 mm	1.07 mm	0.042 in	50 ft	15.24 m	300 VDC	0.5 in	12.7 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded		10
3M Electronic Specialty 3811/15 100	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple		15	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	100 '	30.48 m	1.07 mm	0.042 in			300 VDC	0.75 in	19.05 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
3M Electronic Specialty 3811/18 100	10 GOhm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multiple		18	26 AWG	UL Style 20462	-20 ░C	105 ░C	7	34 AWG	100 '	30.48 m	1.07 mm	0.042 in			300 VDC	0.9 in	22.86 mm	0.05 in	1.27 mm	Flat Cable	Zippable	Unshielded
