AZ3526 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

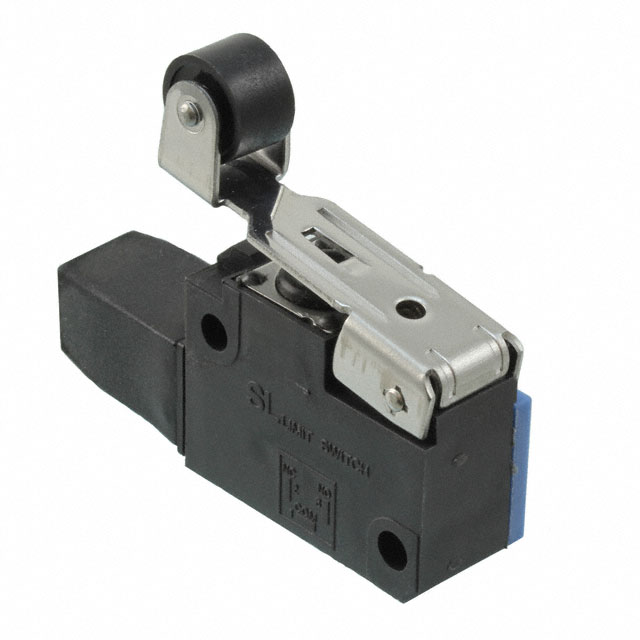

SWITCH SNAP ACTION SPDT 4A 125V
| Part | Features | Circuit | Current Rating (Amps) | Operating Force | Differential Travel | Differential Travel | Voltage Rating - DC | Actuator Type | Termination Style | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ingress Protection | Electrical Life | Release Force | Switch Function | Mechanical Life | Voltage Rating - AC | Pretravel | Pretravel | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Terminal Cover | SPDT | 4 A | 300 gf | 1 mm | 0.04 in | 30 V | Lever Roller | Solder Quick Connect - 0.110" (2.8mm) | 0.138 " | 3.5 mm | -20 ░C | 60 °C | Chassis Mount | IP60 | 100000 Cycles | 60 gf | On-Mom | 10000000 Cycles | 125 V | 2 mm | 0.08 in | 1.091 in | 27.7 mm |
