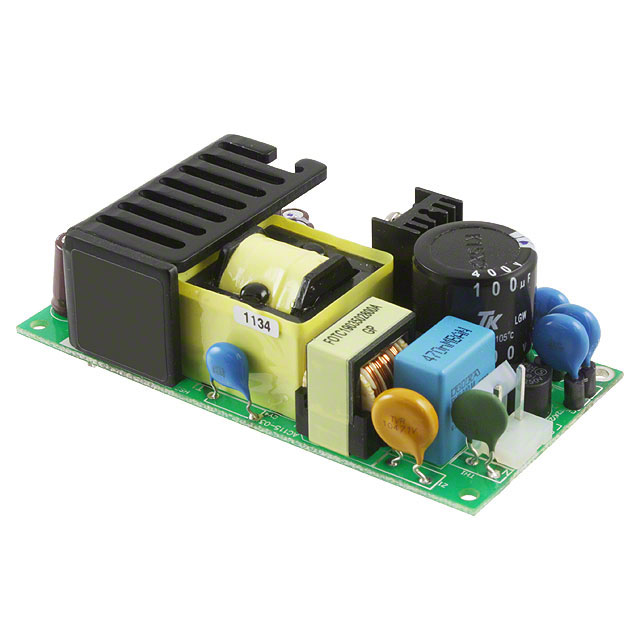

ZPT40 Series

Catalog

AC/DC CONVERTER 5V +/-15V 40W

Part	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features	Mounting Type	Type	Voltage - Output 1	Current - Output 3	Power (Watts)	Approval Agency	Voltage - Output 3	Applications	Current - Output 1	Efficiency	Current - Output 2	Operating Temperature [Max]	Voltage - Output 2	Voltage - Isolation
TDK Corporation ZPT40-51515N	3	264 VAC	90 VAC	2 in	50.8 mm	27.1 mm	1.07 in	101.6 mm	4 "	Adjustable Output	Chassis Mount	Open Frame	5 V	300 mA	40 W	CE	-15 V	ITE (Commercial)	3.2 A	75 %	1.5 A	70 °C	15 V	3000 V
TDK Corporation ZPT40-5245N	3	264 VAC	90 VAC	2 in	50.8 mm	27.1 mm	1.07 in	101.6 mm	4 "	Adjustable Output	Chassis Mount	Open Frame	5 V	300 mA	40 W	CE	-5 V	ITE (Commercial)	3.2 A	75 %	1 A	70 °C	24 V	3000 V
TDK Corporation ZPT40-52412N	3	264 VAC	90 VAC	2 in	50.8 mm	27.1 mm	1.07 in	101.6 mm	4 "	Adjustable Output	Chassis Mount	Open Frame	5 V	300 mA	40 W	CE	-12 V	ITE (Commercial)	3.2 A	75 %	1 A	70 °C	24 V	3000 V
