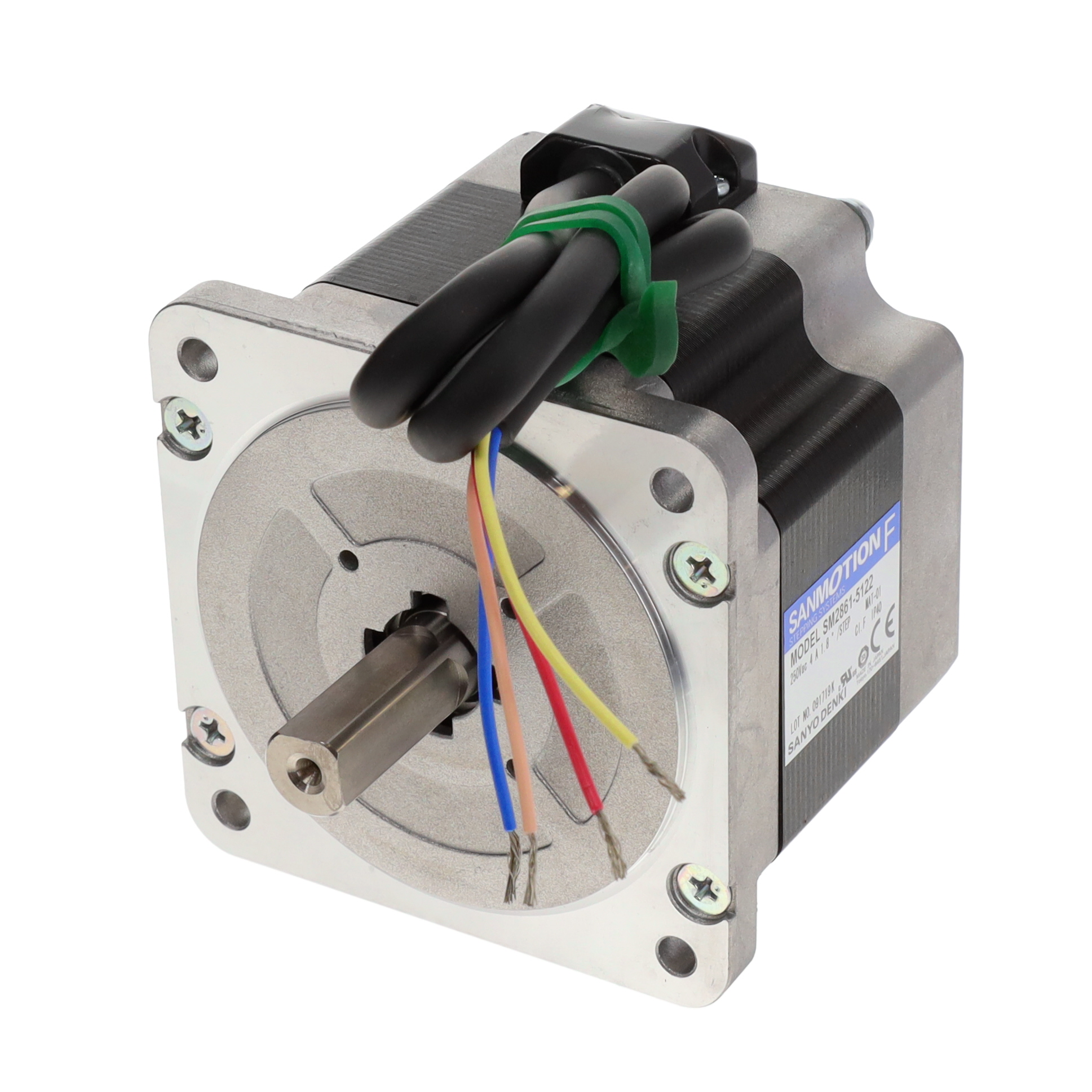

SM2861 Series
Manufacturer: Sanyo Denki SanMotion Products
Beta
⌘K
STEP, F2, SQ.86, 1.8, HALF INCH
| Part | Approval Agency | Rotor Inertia | Type | Coil Type | Length - Shaft and Bearing | Length - Shaft and Bearing | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | NEMA Frame Size | Steps per Revolution | Voltage - Rated | Step Angle | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki SanMotion Products | CE cURus TUV | 35.59 gcm² | Hybrid Dual Shaft | Bipolar | 1.181 in | 30 mm | 50 °C | -10 °C | 560 Ohms | 69.6 mm | 2.74 in | 4 A | 86 mm | 86 mm | 3.386 " | 3.386 in | 3300 mNm | 467.3 oz-in | 34 | 200 | 100 VAC | 1.8 ° | Wire Leads | 12.7 mm | 0.5 in |
