CUS350MP Series

Catalog

SWITCHING POWER SUPPLIES AC-DC, MEDICAL, 115-230VAC, OUTPUT 24V 20.8A (41.7A PK) 500W + PCB COATING

Part	Approval Agency	Voltage - Output 1	Current - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Mounting Type	Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Voltage - Output 1 [custom]

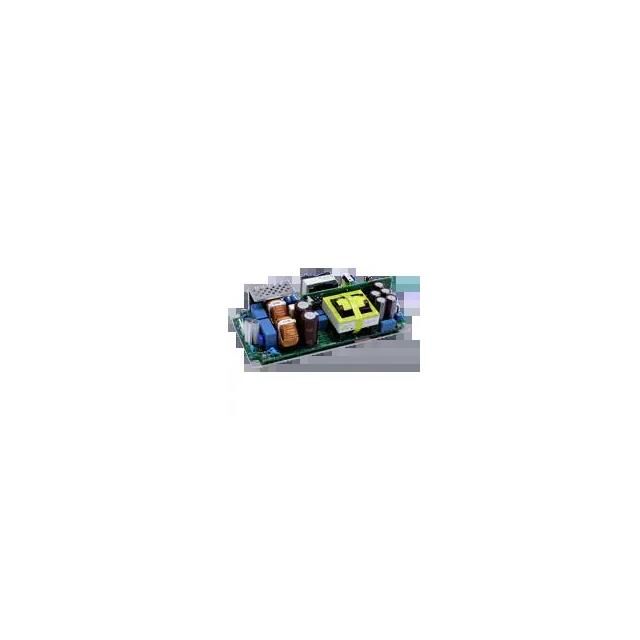

TDK Corporation CUS350MP-1000-24/CO2	CE	24 V	14.6 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1	49.5 mm	212.1 mm	99.6 mm	8.35 in	1.95 in	3.92 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame Conformal Coated	85 VAC 120 VDC	265 VAC 370 VDC	499 W	350 W	94 %
TDK Corporation CUS350MP-1000-30/A	CE	30 V	11.65 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Enclosed	85 VAC 120 VDC	265 VAC 370 VDC	498 W	350 W	94 %	88 mm	44 mm	4000 V
TDK Corporation CUS350MP-1000-30/CO2	CE	30 V	11.65 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1	49.5 mm	212.1 mm	99.6 mm	8.35 in	1.95 in	3.92 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame Conformal Coated	85 VAC 120 VDC	265 VAC 370 VDC	498 W	350 W	94 %			4000 V
TDK Corporation CUS350MP-1000-36/T	CE		9.7 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame	85 VAC 120 VDC	265 VAC 370 VDC	497 W	349 W	94 %	88 mm	44 mm	4000 V	36 V
TDK Corporation CUS350MP-1000-24/SF	CE	24 V	14.6 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame	85 VAC 120 VDC	265 VAC 370 VDC	499 W	350 W	94 %	88 mm	44 mm	4000 V
TDK Corporation CUS350MP-1000-48/TA	CE	48 V	7.3 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Enclosed	85 VAC 120 VDC	265 VAC 370 VDC	499 W	350 W	94 %	88 mm	44 mm	4000 V
TDK Corporation CUS350MP-1000-30	CE	30 V	11.65 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Baseplate Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame	85 VAC 120 VDC	265 VAC 370 VDC	498 W	350 W	94 %	88 mm	44 mm	4000 V
TDK Corporation CUS350MP-1000-48/T	CE	48 V	7.3 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame	85 VAC 120 VDC	265 VAC 370 VDC	499 W	350 W	94 %	88 mm	44 mm	4000 V
TDK Corporation CUS350MP-1000-48/CO2	CE	48 V	7.3 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1	49.5 mm	212.1 mm	99.6 mm	8.35 in	1.95 in	3.92 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Open Frame Conformal Coated	85 VAC 120 VDC	265 VAC 370 VDC	499 W	350 W	94 %			4000 V
TDK Corporation CUS350MP-1000-36/TA	CE		9.7 A	1	70 °C	-20 °C	ITE (Commercial) Medical	60601-1; 62368-1		183 mm		7.2 "	1.73 "	3.46 in	Adjustable Output Remote On/Off Remote Sense Standby Output	Chassis Mount	Enclosed	85 VAC 120 VDC	265 VAC 370 VDC	497 W	349 W	94 %	88 mm	44 mm	4000 V	36 V
