JB5DS08M Series
Manufacturer: JAE Electronics
Beta
⌘K

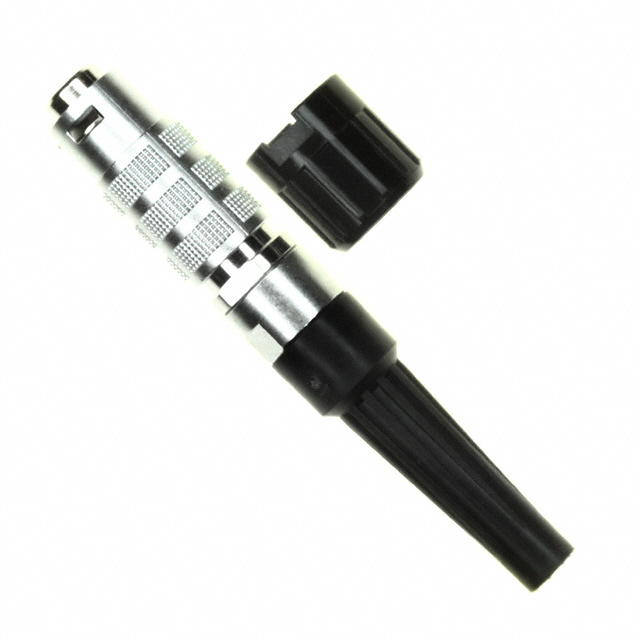

CONN PLUG MALE 8POS SOLDER CUP
| Part | Shielding | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Contact Finish - Mating | Fastening Type | Current Rating (Amps) | Number of Positions | Shell Size - Insert | Color | Shell Finish | Mounting Type | Features | Applications | Voltage Rating | Shell Material | Insert Material | Contact Material | Ingress Protection | Orientation | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Shielded | Plug Male Pins | 0.76 Ám | 30 Áin | -55 C | 85 °C | Metal | Gold | Push-Pull | 2 A | 8 | S | Black Silver | Nickel | Free Hanging (In-Line) | Clamp Strain Relief | Medical Telecommunications Test & Measurement | 200 VAC | Zinc Alloy | Synthetic Resin | Copper Alloy | IP68 - Dust Tight Waterproof | Keyed | 0.177 in | 5 mm | 4.5 mm | 0.197 in |
