2461C Series

Catalog

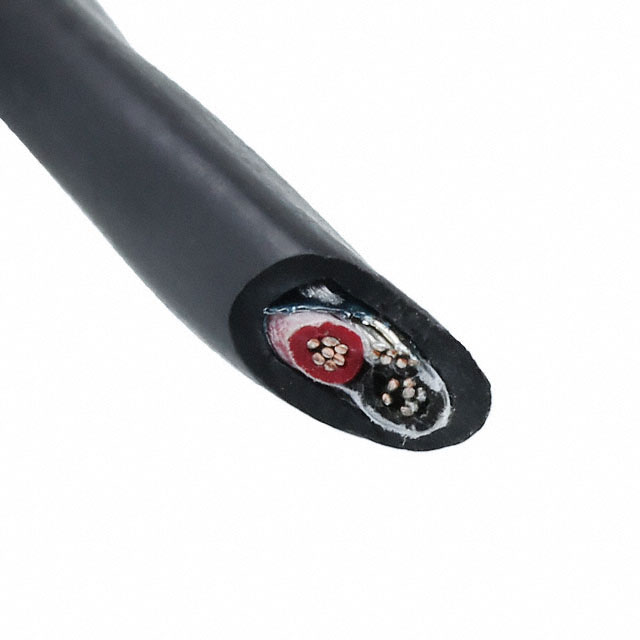

SHIELDED MULTI-CONDUCTOR CABLE TAPE POLYPROPYLENE 2CONDUCTORS 22AWG 3.68MM 300VAC SLATE POLYVINYL CHLORIDE 304.8M SPOOL

Part	Shield Material	Shield Coverage	Conductor Insulation	Cable Type	Length	Length	Conductor Material	Number of Conductors	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Features	Usage	Voltage	Length [x]	Length [x]
ALPHA WIRE 2461C SL001	Aluminum	100 %	Polypropylene (PP)	Multi-Conductor	304.8 m	1000 ft	Copper Tinned	2	22 AWG	0.02 "	0.508 mm	Poly-Vinyl Chloride (PVC)	Slate	3.45 mm	0.136 in	30 AWG	7	Foil	Drain Wire	Communication Control	300 VDC
ALPHA WIRE 2461C SL021	Aluminum	100 %	Polypropylene (PP)	Multi-Conductor	304.8 m	1000 ft	Copper Tinned	2	22 AWG	0.02 "	0.508 mm	Poly-Vinyl Chloride (PVC)	Slate	3.45 mm	0.136 in	30 AWG	7	Foil	Drain Wire	Communication Control	300 VDC
ALPHA WIRE 2461C BK002	Aluminum	100 %	Polypropylene (PP)	Multi-Conductor	152.4 m	500 ft	Copper Tinned	2	22 AWG	0.02 "	0.508 mm	Poly-Vinyl Chloride (PVC)	Black	3.45 mm	0.136 in	30 AWG	7	Foil	Drain Wire	Communication Control	300 VDC
ALPHA WIRE 2461C BK001	Aluminum	100 %	Polypropylene (PP)	Multi-Conductor	304.8 m	1000 ft	Copper Tinned	2	22 AWG	0.02 "	0.508 mm	Poly-Vinyl Chloride (PVC)	Black	3.45 mm	0.136 in	30 AWG	7	Foil	Drain Wire	Communication Control	300 VDC
ALPHA WIRE 2461C BK005	Aluminum	100 %	Polypropylene (PP)	Multi-Conductor			Copper Tinned	2	22 AWG	0.02 "	0.508 mm	Poly-Vinyl Chloride (PVC)	Black	3.45 mm	0.136 in	30 AWG	7	Foil	Drain Wire	Communication Control	300 VDC	100 ft	30.5 m
ALPHA WIRE 2461C BK021	Aluminum	100 %	Polypropylene (PP)	Multi-Conductor	304.8 m	1000 ft	Copper Tinned	2	22 AWG	0.02 "	0.508 mm	Poly-Vinyl Chloride (PVC)	Black	3.45 mm	0.136 in	30 AWG	7	Foil	Drain Wire	Communication Control	300 VDC
