VFD69383 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANT LOW PROFILE 2-PORT SHARKFIN

Part	Number of Bands	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	Gain	RF Family/Standard	VSWR	Frequency Group	Height (Max) [z]	Height (Max) [z]	Applications	Termination	Antenna Type	Ingress Protection	Features	Power - Max [Max]	Frequency (Center/Band)
TE Connectivity AMP Connectors VFD69383B1NJN-518Q	12	Panel Mount	1.559 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	1.606 GHz 1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	0.9 dBi 1.7 dBi 1.9 dBi 3.7 dBi 3.8 dBi 4.3 dBi 4.7 dBi 5.1 dBic 5.5 dBi 5.6 dBi 7 dBi	Cellular General ISM Navigation	2	Wide Band	48 mm	1.89 in	3G 4G 5G BeiDou GLONASS GNSS GPS ISM LTE	SMA Male (2)	Dome	IP67	Cable - 5.18M LNA	10 W	1.561 GHz 1.575 GHz 1.602 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz

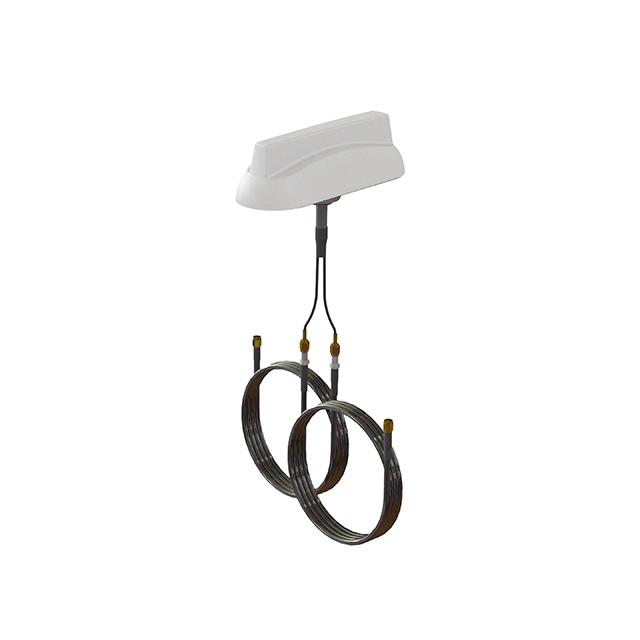

TE Connectivity AMP Connectors VFD69383W2NNN-518R	9	Panel Mount	1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	0.2 dBi 1 dBi 1.5 dBi 2.9 dBi 3.2 dBi 3.5 dBi 3.6 dBi 4 dBi 5.1 dBic	Cellular General ISM	2	Wide Band	48 mm	1.89 in	3G 4G 5G ISM LTE		Dome	IP67	Cable - 5.18M	10 W	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz
TE Connectivity AMP Connectors VFD69383B1NJN-518Q	12	Panel Mount	1.559 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	1.606 GHz 1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	0.9 dBi 1.7 dBi 1.9 dBi 3.7 dBi 3.8 dBi 4.3 dBi 4.7 dBi 5.1 dBic 5.5 dBi 5.6 dBi 7 dBi	Cellular General ISM Navigation	2	Wide Band	48 mm	1.89 in	3G 4G 5G BeiDou GLONASS GNSS GPS ISM LTE	SMA Male (2)	Dome	IP67	Cable - 5.18M LNA	10 W	1.561 GHz 1.575 GHz 1.602 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz
TE Connectivity AMP Connectors VFD69383W2NNN-518R	9	Panel Mount	1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	0.2 dBi 1 dBi 1.5 dBi 2.9 dBi 3.2 dBi 3.5 dBi 3.6 dBi 4 dBi 5.1 dBic	Cellular General ISM	2	Wide Band	48 mm	1.89 in	3G 4G 5G ISM LTE		Dome	IP67	Cable - 5.18M	10 W	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz
