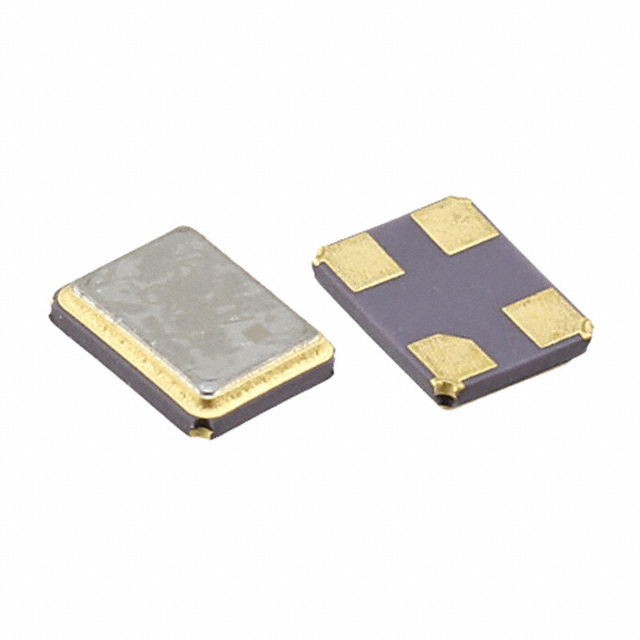

7M Series

Catalog

CRYSTALS 3.2X2.5 SEAM SEAL MHZ QUARTZ XTAL -4PAD / CERAMIC, +/-10PPM A.25C, +/-10PPM (-20 TO 70C), 16PF

Part	Type	Frequency Stability	ESR (Equivalent Series Resistance)	Load Capacitance	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Operating Mode	Frequency Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency
TXC CORPORATION 7M-25.000MEEI-T	MHz Crystal	10 ppm	50 Ohms	16 pF	3.2	2.5	4-SMD	Fundamental	10 ppm	Surface Mount	-20 ░C	70 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	25 MHz
TXC CORPORATION 7M-38.400MAHE-T	MHz Crystal	30 ppm	50 Ohms	12 pF	3.2	2.5	4-SMD	Fundamental	30 ppm	Surface Mount	-40 C	85 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	38.4 MHz
TXC CORPORATION 7M-38.400MAHE-T	MHz Crystal	30 ppm	60 Ohms	12 pF	3.2	2.5	4-SMD	Fundamental	30 ppm	Surface Mount	-40 C	85 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	38.4 MHz
TXC CORPORATION 7M-37.400MAHV-T	MHz Crystal	30 ppm	50 Ohms	8 pF	3.2	2.5	4-SMD	Fundamental	30 ppm	Surface Mount	-40 C	85 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	37.4 MHz
TXC CORPORATION 7M-27.000MAHI-T	MHz Crystal	30 ppm	60 Ohms	16 pF	3.2	2.5	4-SMD	Fundamental	30 ppm	Surface Mount	-40 C	85 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	27 MHz
TXC CORPORATION 7M-40.000MEEV-T	MHz Crystal	10 ppm	60 Ohms	8 pF	3.2	2.5	4-SMD	Fundamental	10 ppm	Surface Mount	-20 ░C	70 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	40 MHz
TXC CORPORATION 7M-13.000MEEE-T	MHz Crystal	10 ppm	80 Ohm	12 pF	3.2	2.5	4-SMD	Fundamental	10 ppm	Surface Mount	-20 ░C	70 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	13 MHz
TXC CORPORATION 7M-48.000MAHC-T	MHz Crystal	30 ppm	60 Ohms	9 pF	3.2	2.5	4-SMD	Fundamental	30 ppm	Surface Mount	-40 C	85 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	48 MHz
TXC CORPORATION 7M-33.33330MAAJ-T	MHz Crystal	30 ppm	50 Ohms	18 pF	3.2	2.5	4-SMD	Fundamental	30 ppm	Surface Mount	-20 ░C	70 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	33.3333 MHz
TXC CORPORATION 7M25080003	MHz Crystal	18 ppm		12 pF	3.2	2.5	4-SMD		10 ppm	Surface Mount	0 °C	90 °C	0.031 in	0.8 mm	4-SMD No Lead	2.5 mm	0.098 in	3.2 mm	0.126 "	25 MHz
