TPD4E1U06 Series

Quad 0.8-pF, 5.5-V, ±15-kV ESD protection diode in SOT-23 & SC70 packages

Catalog

Quad 0.8-pF, 5.5-V, ±15-kV ESD protection diode in SOT-23 & SC70 packages

Part	Function	Utilized IC / Part	Supplied Contents	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Type	Current - Peak Pulse (10/1000çs)	Package / Case	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse
Texas Instruments TPD4E1U06DBVEVM	Electrostatic Discharge (ESD)	TPD4E1U06	Board(s)
Texas Instruments TPD4E1U06DBVR				5.5 V	SOT-23-6	125 °C	-40 °C	Ethernet HDMI	Surface Mount	Steering	3 A	SOT-23-6	4	6.5 V	15 V	45 W

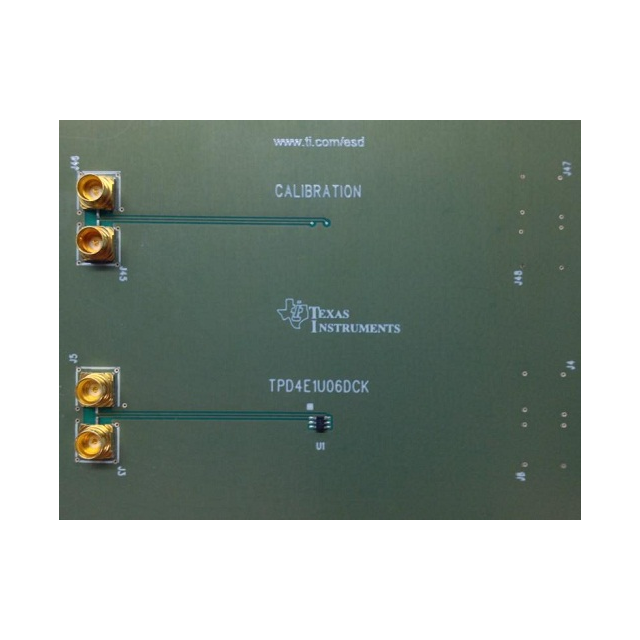

Texas Instruments TPD4E1U06DCKEVM	Electrostatic Discharge (ESD)	TPD4E1U06	Board(s)

Catalog

Quad 0.8-pF, 5.5-V, ±15-kV ESD protection diode in SOT-23 & SC70 packages

Key Features

• IEC 61000-4-2 Level 4 ESD Protection±15-kV Contact Discharge±15-kV Air-Gap DischargeIEC 61000-4-4 EFT Protection80 A (5/50 ns)IEC 61000-4-5 Surge Protection3 A (8/20 µs)IO Capacitance 0.8 pF (Typical)DC Breakdown Voltage 6.5 V (Minimum)Ultra Low Leakage Current 10 nA (Maximum)Low ESD Clamping VoltageIndustrial Temperature Range: –40°C to +125°CSmall, Easy-to-Route DCK, and DBV PackageIEC 61000-4-2 Level 4 ESD Protection±15-kV Contact Discharge±15-kV Air-Gap DischargeIEC 61000-4-4 EFT Protection80 A (5/50 ns)IEC 61000-4-5 Surge Protection3 A (8/20 µs)IO Capacitance 0.8 pF (Typical)DC Breakdown Voltage 6.5 V (Minimum)Ultra Low Leakage Current 10 nA (Maximum)Low ESD Clamping VoltageIndustrial Temperature Range: –40°C to +125°CSmall, Easy-to-Route DCK, and DBV Package

Description

The TPD4E1U06 is a quad-channel unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode with ultra low capacitance. This device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. Its 0.8-pF line capacitance makes it suitable for a wide range of applications. Typical application areas include HDMI, USB2.0, MHL, and DisplayPort. The TPD4E1U06 is a quad-channel unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode with ultra low capacitance. This device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. Its 0.8-pF line capacitance makes it suitable for a wide range of applications. Typical application areas include HDMI, USB2.0, MHL, and DisplayPort.
