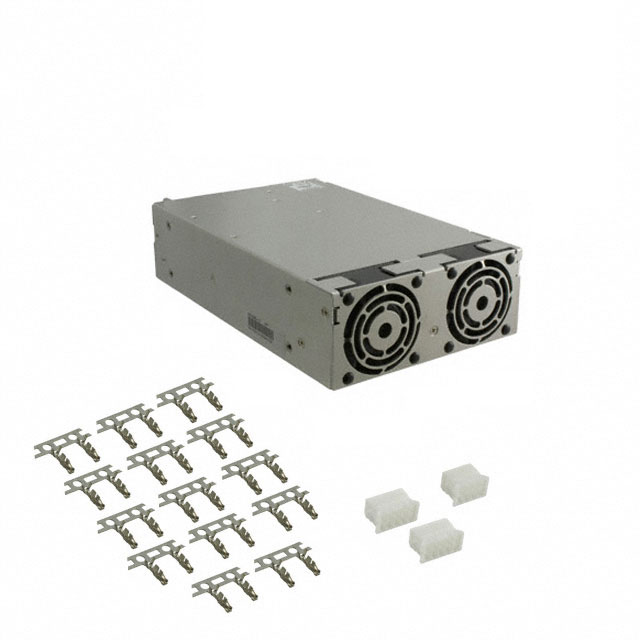

SWS1000 Series

Switching Power Supplies 1020W 60V 17A Medical, 115-230VAC

Manufacturer: TDK Corporation

Catalog

Switching Power Supplies 1020W 60V 17A Medical, 115-230VAC

Catalog

Switching Power Supplies 1020W 60V 17A Medical, 115-230VAC

Part	Features	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Number of Outputs	Mounting Type	Voltage - Output 1	Power (Watts)	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Current - Output 1	Type	Efficiency	Voltage - Output 1 [custom]

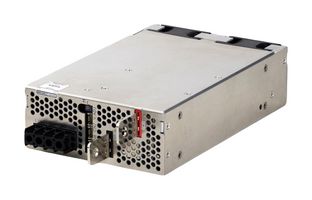

TDK Corporation SWS1000L-3	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	265 VAC	85 VAC	Medical	1	Chassis Mount	3.3 V	1 kW	CE cURus TUV	5.91 in	240 mm	9.45 "	2.4 in	61 mm	150 mm	4000 V	200 A	Enclosed	77 %
TDK Corporation SWS1000L-60	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	265 VAC	85 VAC	Medical	1	Chassis Mount		1020 W	CE cURus TUV	5.91 in	240 mm	9.45 "	2.4 in	61 mm	150 mm	4000 V	17 A	Enclosed	86 %	60 V
TDK Corporation SWS1000L-36/CO2	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	265 VAC	85 VAC	ITE (Commercial)	1	Chassis Mount		1044 W	CE	5.91 in	240 mm	9.45 "	2.4 in	61 mm	150.1 mm	4000 V	29 A	Enclosed	86 %	36 V
TDK Corporation SWS1000L-5	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	265 VAC	85 VAC	Medical	1	Chassis Mount	5 V	1 kW	CE cURus TUV	5.91 in	240 mm	9.45 "	2.4 in	61 mm	150 mm	4000 V	200 A	Enclosed	81 %
TDK Corporation SWS1000L-12	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	265 VAC	85 VAC	Medical	1	Chassis Mount	12 V	1 kW	CE cURus TUV	5.91 in	240 mm	9.45 "	2.4 in	61 mm	150 mm	4000 V	88 A	Enclosed	84 %
