8580-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

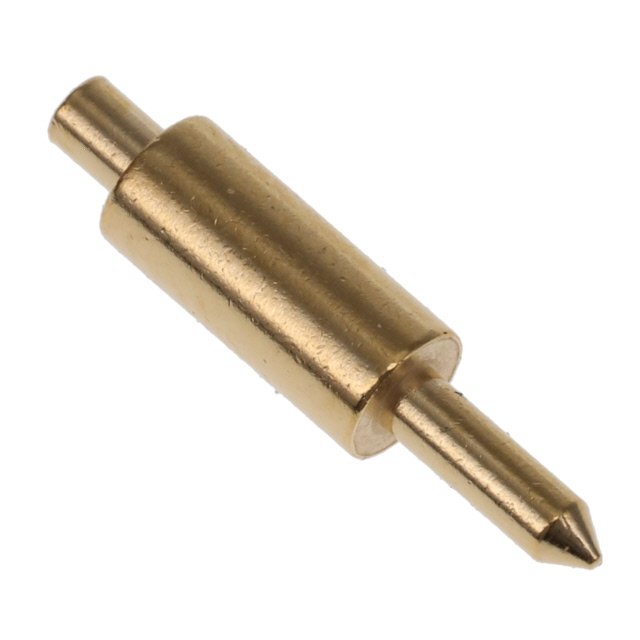

SWAGE TERMINAL PIN
| Part | Insulation | Length - Above Flange | Length - Above Flange [custom] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Style | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Termination | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 5.33 mm | 0.21 in | 1.52 mm | 0.06 in | 1.75 mm | 0.069 in | 0.25 Ám | 10 Áin | 0.58 " | 14.73 mm | 0.065 in | 1.65 mm | Single End | PC Pin | 0.09 " | 2.29 mm | 0.125 in | 3.18 mm | Gold | Swage | Through Hole | Brass Alloy |
