248005 Series

Catalog

WIRE TO BOARD

Part	Insulation Material	Contact Material	Contact Shape	Voltage Rating	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Type	Fastening Type	Termination	Number of Positions Loaded	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Number of Rows	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type

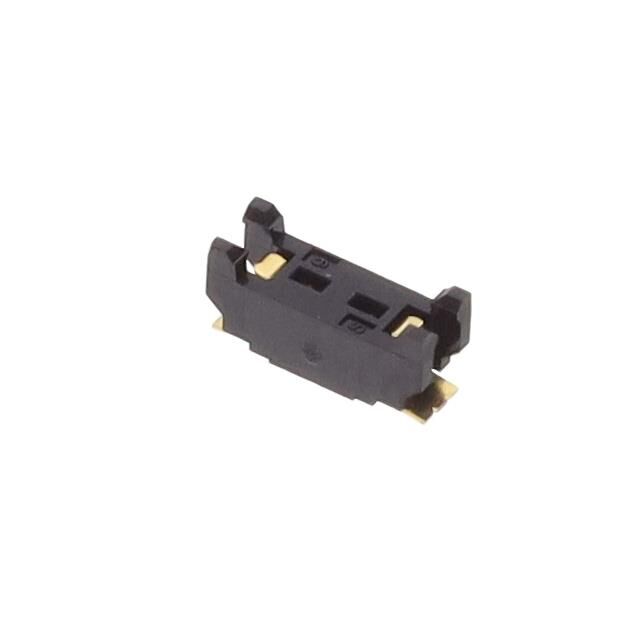

KYOCERA AVX 248005602100867+	Plastic	Copper Alloy	Rectangular	30 VDC	Board to Cable/Wire	1.27 mm	0.05 in	0.38 µm	15 µin	Solder Retention	Female Socket	Latch Holder	Solder	All	2	1 A	Gold	1	Receptacle	Black	-55 C	80 °C	Right Angle Surface Mount
KYOCERA AVX 248005502100867+	Plastic	Copper Alloy	Rectangular	30 VDC	Board to Cable/Wire	1.27 mm	0.05 in	0.38 µm	15 µin	Solder Retention	Female Socket	Latch Holder	Solder	All	2	1 A	Gold	1	Receptacle	Black	-55 C	80 °C	Right Angle Surface Mount
