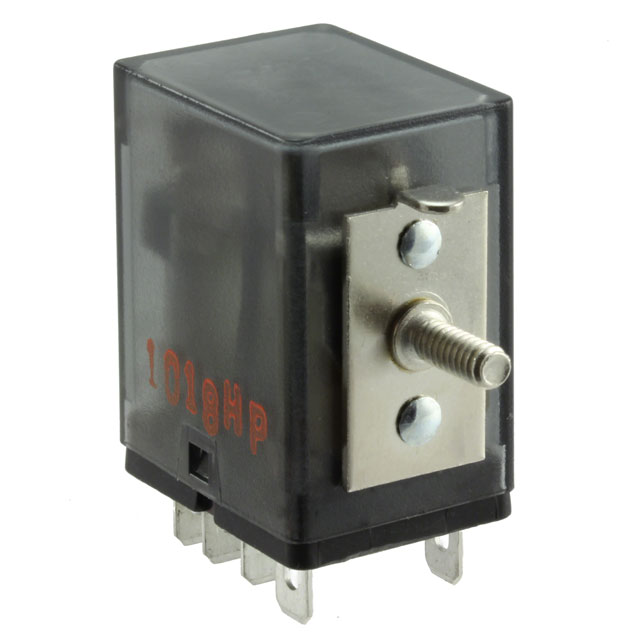

K10P-11 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 15A 120V
| Part | Contact Material | Must Release Voltage | Coil Insulation | Must Operate Voltage | Coil Current | Contact Form | Coil Type | Termination Style | Mounting Type | Switching Voltage | Coil Voltage | Relay Type | Operate Time | Contact Rating (Current) | Approval Agency | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Coil Resistance | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Cadmium Oxide (AgCdO) | 12 VAC | Class B | 102 VAC | 11 mA | DPDT (2 Form C) | Non Latching | PC Pin | Through Hole | 120 VAC | 120 VAC | General Purpose | 13 ms | 15 A | CSA UR | 10 ms | -45 °C | 70 °C | ||
 TE Connectivity AMP Connectors | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | Class B | 18 VDC | 37 mA | DPDT (2 Form C) | Non Latching | Plug In Quick Connect | Chassis Mount | 120 VAC | 24 VDC | General Purpose | 13 ms | 15 A | CSA UR | 10 ms | -45 °C | 70 °C | 650 Ohms | 0.187 in 4.7 mm |
 TE Connectivity AMP Connectors | Silver Cadmium Oxide (AgCdO) | 4.8 VAC | Class B | 40.8 VAC | 26 mA | DPDT (2 Form C) | Non Latching | Plug In Quick Connect | Socketable | 120 VAC | 48 VAC | General Purpose | 13 ms | 15 A | CSA UR | 10 ms | -45 °C | 70 °C | 668 Ohms | 0.187 in 4.7 mm |
 TE Connectivity AMP Connectors | Silver Cadmium Oxide (AgCdO) | 3.6 VDC | Class B | 27 VDC | 25 mA | DPDT (2 Form C) | Non Latching | Plug In Quick Connect | Chassis Mount | 120 VAC | 36 VDC | General Purpose | 13 ms | 15 A | CSA UR | 10 ms | -45 °C | 70 °C | 1440 Ohms | 0.187 in 4.7 mm |
