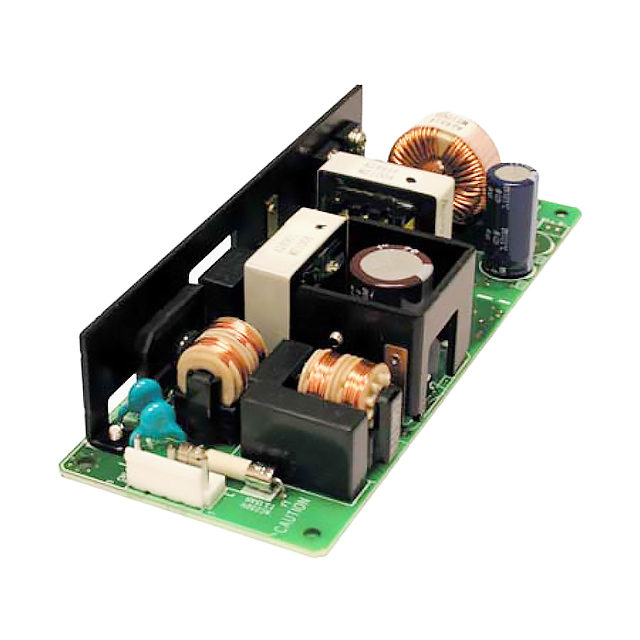

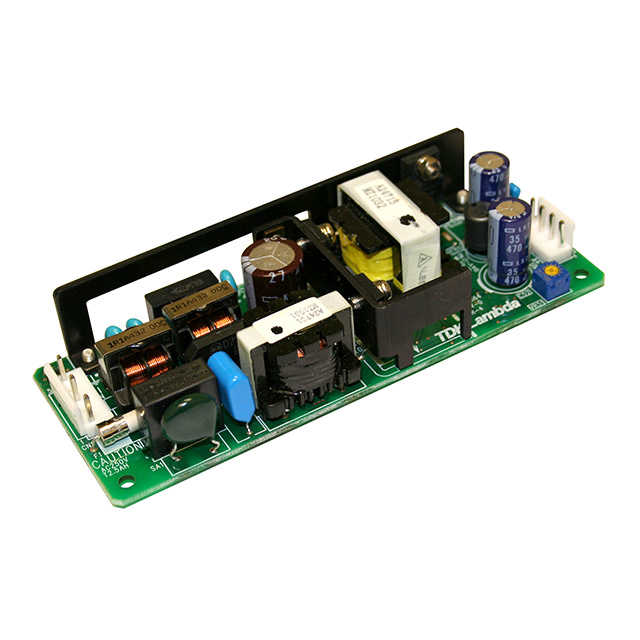

ZWS50BAF Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 12 V

Part	Applications	Features	Number of Outputs	Current - Output 1	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Mounting Type	Voltage - Output 1	Efficiency	Type

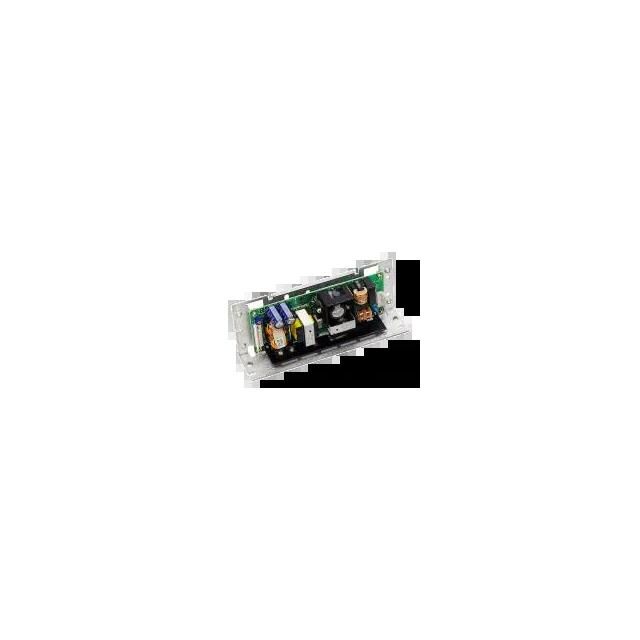

TDK Corporation ZWS50BAF-12/L	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	4.3 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	12 V	85 %	Open Frame
TDK Corporation ZWS50BAF-48/L	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	1.1 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	48 V	86 %	Open Frame
TDK Corporation ZWS50BAF-5/A	ITE (Commercial)	Adjustable Output PFC Universal Input	1	10 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	5 V	84 %	Enclosed
TDK Corporation ZWS50BAF-15/A	ITE (Commercial)	Adjustable Output PFC Universal Input	1	3.5 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	15 V	86 %	Enclosed
TDK Corporation ZWS50BAF-5/L	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	10 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	5 V	84 %	Open Frame
TDK Corporation ZWS50BAF-24/L	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	2.1 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	24 V	87 %	Open Frame
TDK Corporation ZWS50BAF-12/A	ITE (Commercial)	Adjustable Output PFC Universal Input	1	4.3 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	12 V	85 %	Enclosed
TDK Corporation ZWS50BAF-12/CO2	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	4.3 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	12 V	85 %	Open Frame Conformal Coated
TDK Corporation ZWS50BAF-5/CO2	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	1	10 A	CE	70 °C	-10 °C	50 W	5.2 in	132 mm	1.97 in	1.02 "	50 mm	26 mm	265 VAC	85 VAC	3000 V	Chassis Mount	5 V	84 %	Open Frame Conformal Coated
