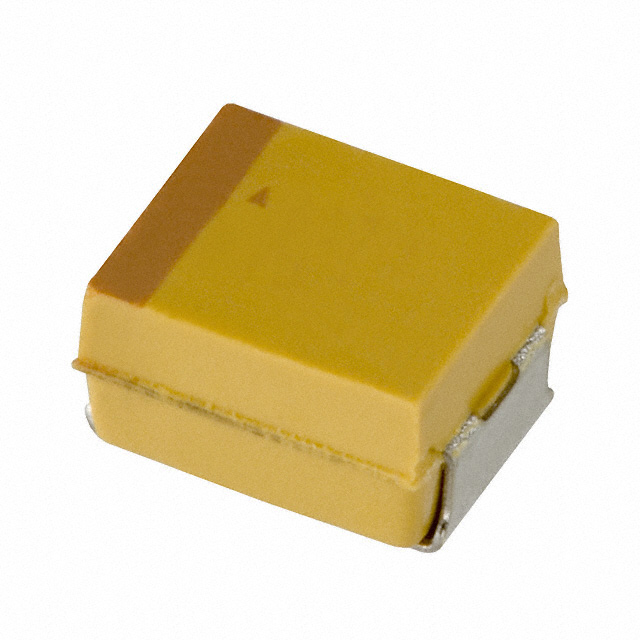

TCQ Series
Manufacturer: KYOCERA AVX
Beta
⌘K
TANTALUM CAPACITORS - POLYMER 50V 3.3UF 1210 ESR=300MOHM 20% AEC-Q200
| Part | Manufacturer Size Code | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | ESR (Equivalent Series Resistance) | Package / Case | Package / Case | Capacitance | Ratings | Voltage - Rated | Tolerance | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | B | -55 C | 125 °C | 2.1 mm | 0.083 in | Surface Mount | 2000 Hrs | 3.5 mm | 0.11 " | 2.8 mm | 0.138 in | 300 mOhm | 3528 Metric | 1411 | 3.3 µF | AEC-Q200 | 50 VDC | 20 % | Molded | Automotive |
 KYOCERA AVX | D | -55 C | 125 °C | 3.1 mm | 0.122 in | Surface Mount | 1000 Hrs | 7.3 mm | 0.169 " | 4.3 mm | 0.287 " | 25 mOhm | 2917 (7343 Metric) | 470 µF | AEC-Q200 | 4 V | 20 % | Molded | Automotive | |
 KYOCERA AVX | B | -55 C | 125 °C | 2.1 mm | 0.083 in | Surface Mount | 1000 Hrs | 3.5 mm | 0.11 " | 2.8 mm | 0.138 in | 70 mOhm | 1210 1411 (3528 Metric) | 47 µF | AEC-Q200 | 6.3 VDC | 20 % | Molded | Automotive | |
 KYOCERA AVX | B | -55 C | 125 °C | 2.1 mm | 0.083 in | Surface Mount | 1000 Hrs | 3.5 mm | 0.11 " | 2.8 mm | 0.138 in | 150 mOhm | 1210 1411 (3528 Metric) | 10 µF | AEC-Q200 | 20 V | 20 % | Molded | Automotive |
