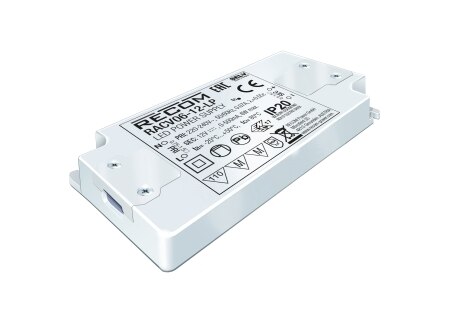

LED Power Supplies 6W 230Vin 12Vout 0-500mA
LED Power Supplies 6W 230Vin 12Vout 0-500mA
| Part | Topology | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Voltage - Output | Power (Watts) | Ratings | Termination Style | Approval Agency | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Isolation | Features | Efficiency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | AC DC Converter | -20 ░C | 50 °C | 198 VAC | 24 V | 6 W | IP20 | Terminal Block | CB CE ENEC | 264 VAC | 11 mm | 3.86 " | 46 mm | 0.43 in | 98 mm | 1.81 in | 1 | 250 mA | 3750 VDC | OTP OVP SCP | 79 % | Constant Voltage |
 Recom Power | AC DC Converter | -20 ░C | 50 °C | 198 VAC | 12 V | 6 W | IP20 | Terminal Block | CB CE ENEC | 264 VAC | 11 mm | 3.86 " | 46 mm | 0.43 in | 98 mm | 1.81 in | 1 | 500 mA | 3750 VDC | OTP OVP SCP | 77 % | Constant Voltage |
