1393306 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

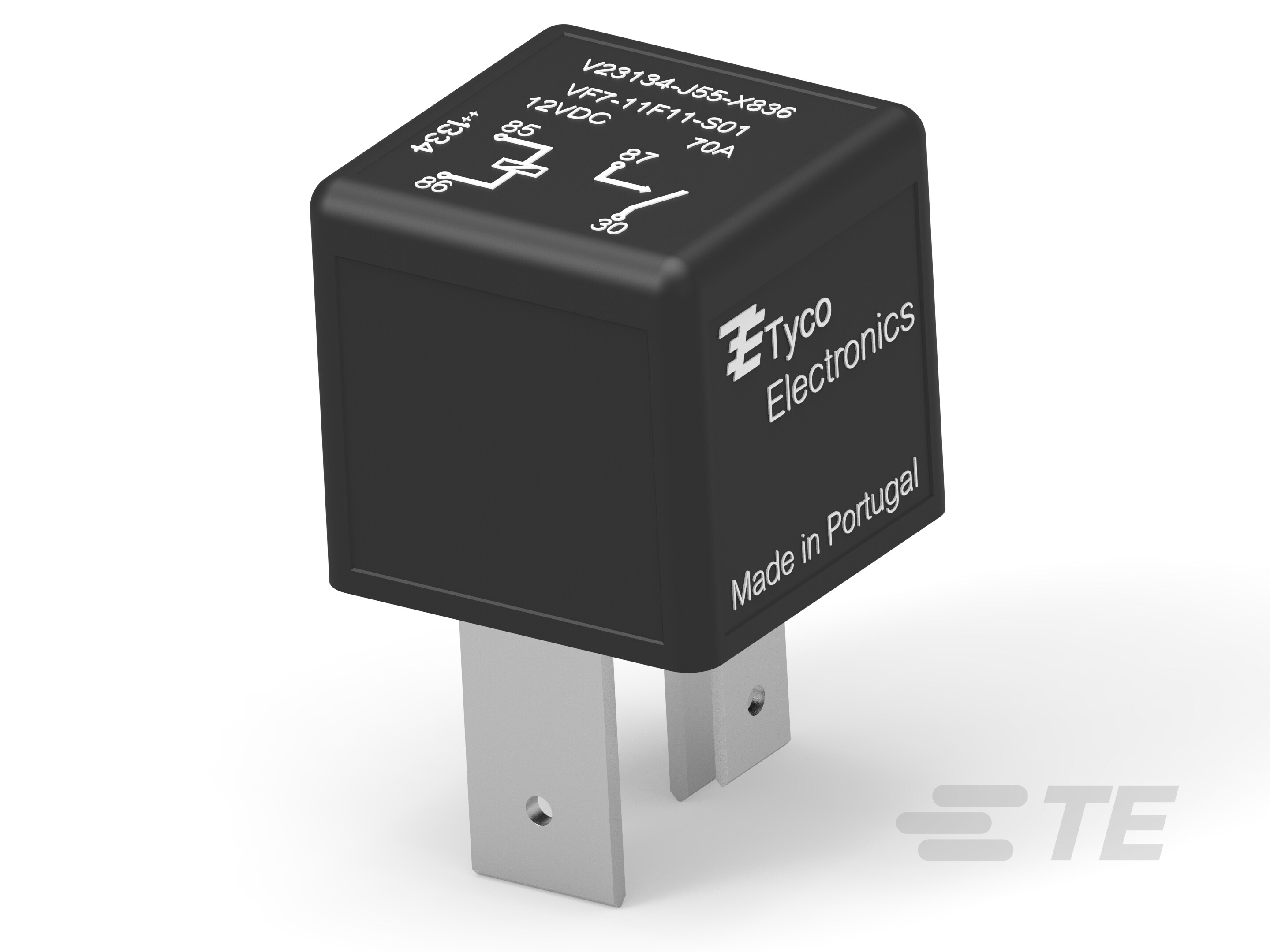

RELAY AUTOMOTIVE SPST 70A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Contact Rating (Current) | Release Time | Contact Form | Coil Voltage | Switching Voltage | Must Release Voltage | Termination Style | Coil Type | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Operate Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 1.6 W | 90 Ohms | 70 A | 2 ms | SPST-NO (1 Form A) | 12 VDC | 14 VDC | 1.2 VDC | Plug In Quick Connect - 0.250" (6.3mm) | Non Latching | 167 mA | 125 °C | -40 C | 7 ms | 7.2 VDC | Socketable |
