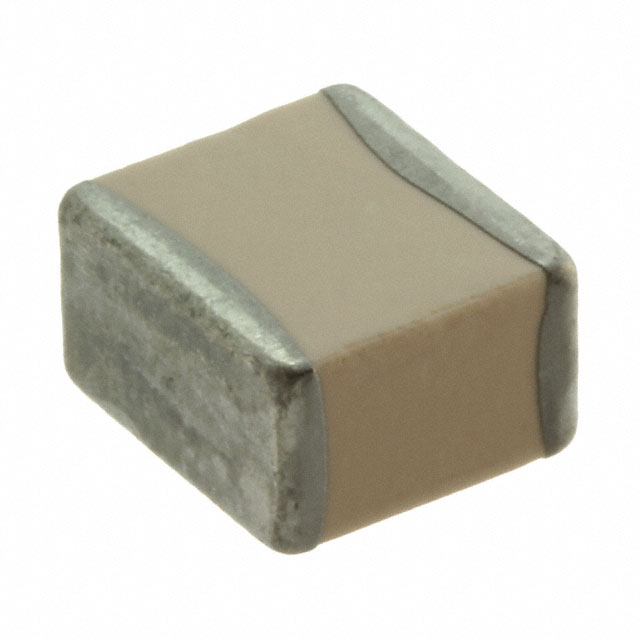

100C Series

Catalog

SILICON RF CAPACITORS / THIN FILM MLC C/E/H

Part	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Capacitance	Applications	Features	Voltage - Rated	Voltage - Rated	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type
KYOCERA AVX 100C330JW2500XJ36	-55 C	125 °C	P90	0.25 in	0.23 "	6.35 mm	5.84 mm	5864 Metric	2325	33 pF	Bypass Decoupling High Frequency Microwave RF	High Q Low ESL Low Loss	2.5 kV	2.5 kV	5 %	0.145 in	3.68 mm	MLCC Surface Mount
KYOCERA AVX 100C270JT2500XJ36	-55 C	125 °C	P90	0.25 in	0.23 "	6.35 mm	5.84 mm	5864 Metric	2325	27 pF	Bypass Decoupling High Frequency Microwave RF	High Q Low ESL Low Loss	2.5 kV	2.5 kV	5 %	0.145 in	3.68 mm	MLCC Surface Mount
