LCRN Series

Catalog

POWER INDUCTORS - SMD 22UH 10.1X10.1MM 20% 3.37A AEC-Q200

Part	Shielding	Current Rating (Amps)	Package / Case	Mounting Type	Ratings	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material - Core	Type	Current - Saturation (Isat)	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Taiyo Yuden LCRNJ10155GL220MN	Shielded	2.8 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	20 %	22 µH	0.398 in	10.1 mm	10.1 mm	0.398 in	Ferrite	Wirewound	3.37 A	43 mOhm	5.85 mm	0.23 in
Taiyo Yuden LCRNJ10165GL3R3NN	Shielded	6.76 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	30 %	3.3 µH	0.398 in	10.1 mm	10.1 mm	0.398 in	Ferrite	Wirewound	9.3 A	8.6 mOhm	6.85 mm	0.27 in

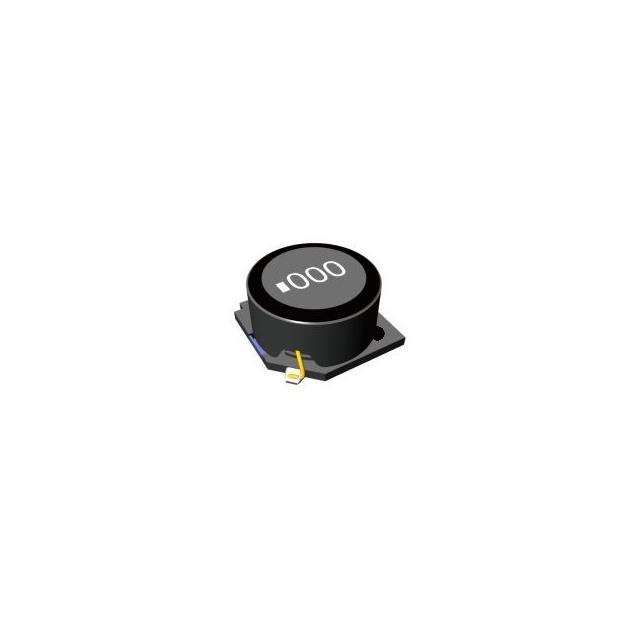

Taiyo Yuden LCRNJ10145GL101MN	Shielded	1.1 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	20 %	100 µH	0.398 in	10.1 mm	10.1 mm	0.398 in	Ferrite	Wirewound	1.4 A	230 mOhm			4.85 mm	0.191 in
Taiyo Yuden LCRNJ12575GL2R7NN	Shielded	7.69 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	30 %	2.7 µH	0.492 "	12.5 mm	12.5 mm	0.492 "	Ferrite	Wirewound	13.91 A	8.5 mOhm	0.309 "				7.85 mm
Taiyo Yuden LCRNJ10145GL221MN	Shielded	780 mA	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	20 %	220 µH	0.398 in	10.1 mm	10.1 mm	0.398 in	Ferrite	Wirewound	910 mA	510 mOhm			4.85 mm	0.191 in
Taiyo Yuden LCRNJ10145GL5R6NN	Shielded	4.45 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	30 %	5.6 µH	0.398 in	10.1 mm	10.1 mm	0.398 in	Ferrite	Wirewound	5.85 A	18.1 mOhm			4.85 mm	0.191 in
Taiyo Yuden LCRNJ12575GL100MN	Shielded	5.55 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	20 %	10 µH	0.492 "	12.5 mm	12.5 mm	0.492 "	Ferrite	Wirewound	7.65 A	15.6 mOhm	0.309 "				7.85 mm
Taiyo Yuden LCRNJ12575GL1R2NN	Shielded	9.15 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	30 %	1.2 µH	0.492 "	12.5 mm	12.5 mm	0.492 "	Ferrite	Wirewound	18.08 A	5.8 mOhm	0.309 "				7.85 mm
Taiyo Yuden LCRNJ12575GL102MN	Shielded	0.53 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	20 %	1 mH	0.492 "	12.5 mm	12.5 mm	0.492 "	Ferrite	Wirewound	720 mA	1.17 Ohm	0.309 "				7.85 mm
Taiyo Yuden LCRNJ12575GL220MN	Shielded	4.05 A	Nonstandard	Surface Mount	AEC-Q200	100 kHz	125 °C	-40 C	20 %	22 µH	0.492 "	12.5 mm	12.5 mm	0.492 "	Ferrite	Wirewound	5.5 A	26 mOhm	0.309 "				7.85 mm
