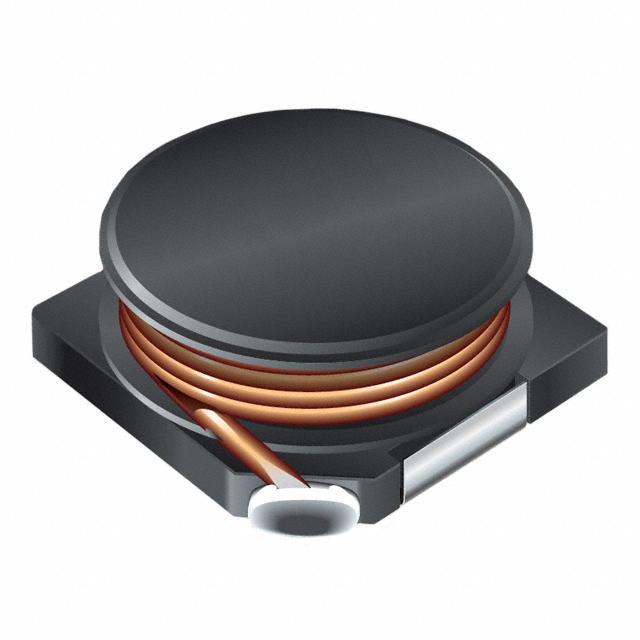

SDR7030 Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND7X7X3MM,100UH10%0.46A,SHDSMD /TAPE & REEL - 13" REEL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Type | Current - Saturation (Isat) | Mounting Type | Material - Core | Inductance | Current Rating (Amps) | Frequency - Self Resonant | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Package / Case | Q @ Freq | DC Resistance (DCR) [Max] | Tolerance | DC Resistance (DCR) | Q @ Freq [custom] | Q @ Freq [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 520 mA | Surface Mount | Ferrite | 100 µH | 460 mA | 15 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 18 796 kHz | 720 mOhm | 10 % | |||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 150 mA | Surface Mount | Ferrite | 1 mH | 150 mA | 4 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 66 252 kHz | 6.2 Ohm | 10 % | |||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 2 A | Surface Mount | Ferrite | 6.2 µH | 1.65 A | 41 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 7.96 MHz 17 | 58 mOhm | 20 % | |||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 1.3 A | Surface Mount | Ferrite | 15 µH | 1.2 A | 33 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 2.52 MHz 14 | 20 % | 115 mOhm | |||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 340 mA | Surface Mount | Ferrite | 220 µH | 320 mA | 9 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 23 796 kHz | 1.6 Ohm | 10 % | |||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 780 mA | Surface Mount | Ferrite | 47 µH | 700 mA | 18 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 340 mOhm | 10 % | 12 | 2.52 MHz | ||
 Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 900 mA | Surface Mount | Ferrite | 33 µH | 0.85 A | 24 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 2.52 MHz 13 | 230 mOhm | 20 % | |||
 Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 4.3 A | Surface Mount | Ferrite | 1 µH | 3 A | 113 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 7.96 MHz 18 | 20 % | ||||
Bourns Inc. | 125 °C | -40 C | 100 kHz | Drum Core Wirewound | 2.6 A | Surface Mount | Ferrite | 3.5 µH | 2.2 A | 59 MHz | 0.13 in | 3.3 mm | 0.276 " | 0.276 in | 7 mm | 7 mm | Unshielded | Nonstandard | 7.96 MHz 17 | 20 % | 38 mOhm |
