SG73P1E Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

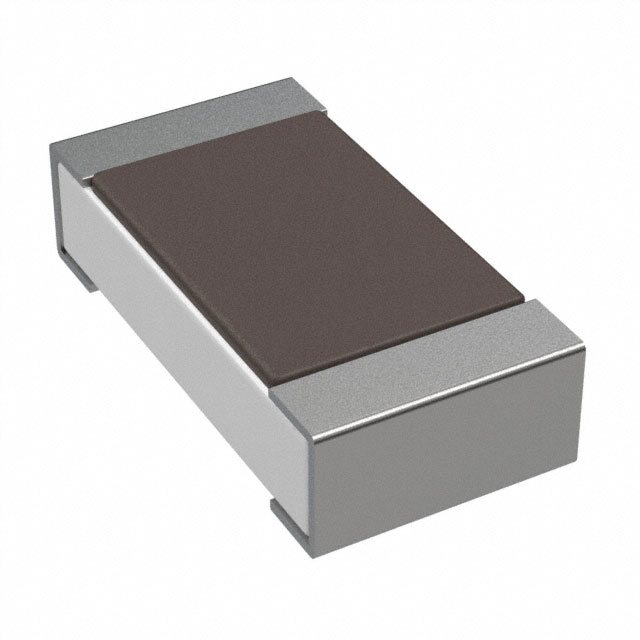

RES 1 OHM 2% 1/5W 0402

...

Part	Power (Watts)	Power (Watts)	Temperature Coefficient	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Ratings	Composition	Resistance	Package / Case	Supplier Device Package	Number of Terminations [custom]
KOA Speer Electronics, Inc. SG73P1ETTP1R0G	0.2 W	0.2 W	200 ppm/°C	2 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	1 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ETTP69R8D	0.2 W	0.2 W	200 ppm/°C	0.5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	69.8 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ERTTP8451D	0.2 W	0.2 W	200 ppm/°C	0.5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	8.45 kOhms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ERTTP1502F	0.2 W	0.2 W	200 ppm/°C	1 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	15 kOhms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ERTTP3010D	0.2 W	0.2 W	200 ppm/°C	0.5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	301 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ERTTP3R3J	0.2 W	0.2 W	200 ppm/°C	5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	3.3 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ERTTP3480D	0.2 W	0.2 W	200 ppm/°C	0.5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	348 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ETTP2260F	0.2 W	0.2 W	200 ppm/°C	1 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	226 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ETTP31R6D	0.2 W	0.2 W	200 ppm/°C	0.5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	31.6 Ohms	0402 (1005 Metric)	0402	2
KOA Speer Electronics, Inc. SG73P1ERTTP2213D	0.2 W	0.2 W	200 ppm/°C	0.5 %	0.016 in	0.4 mm	155 C	-55 C	0.02 in	0.5 mm	0.039 "	1 mm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	AEC-Q200	Thick Film	221 kOhms	0402 (1005 Metric)	0402	2
