084506 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT HSG FMALE 31POS PNL MT
| Part | Contact Shape | Shell Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Orientation | Fastening Type | Type | Note | Contact Size | Connector Type | Material Flammability Rating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shielding | Number of Positions | Ingress Protection | Accessory Type | Color | Material | Shell Size - Insert | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 125 °C | -40 °C | Black | Keyed | Bayonet Lock | For Female Sockets | Contacts Not Included | 16 | Receptacle Housing | UL94 V-0 | 31 | 24 | Unshielded | 31 | IP67 - Dust Tight Waterproof | |||||
 Molex | Hex Nut | Black | Polybutylene Terephthalate (PBT) | 24 | Extra Rugged Circular (XRC) Receptacle Series 84506 Extra Rugged Circular (XRC) Receptacle Series 84511 | ||||||||||||||||||

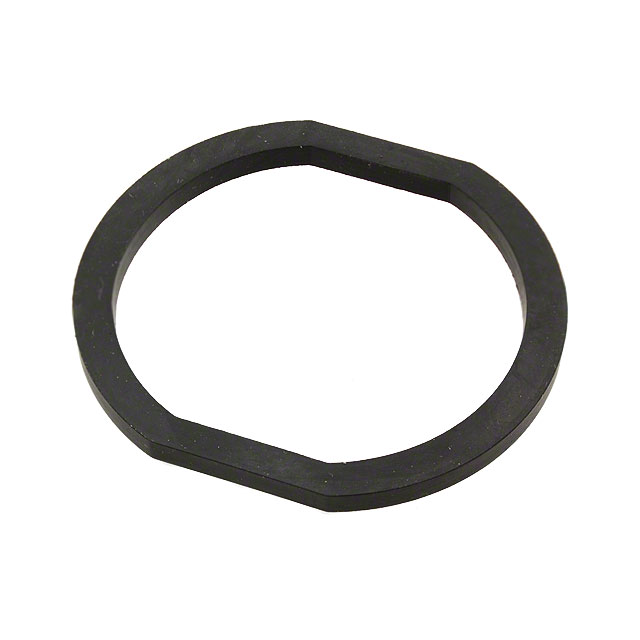

 Molex | Flange Gasket | Black | Neoprene | 24 | Extra Rugged Circular (XRC) Receptacle Series 84506 Extra Rugged Circular (XRC) Receptacle Series 84511 |
