040705.5A Series

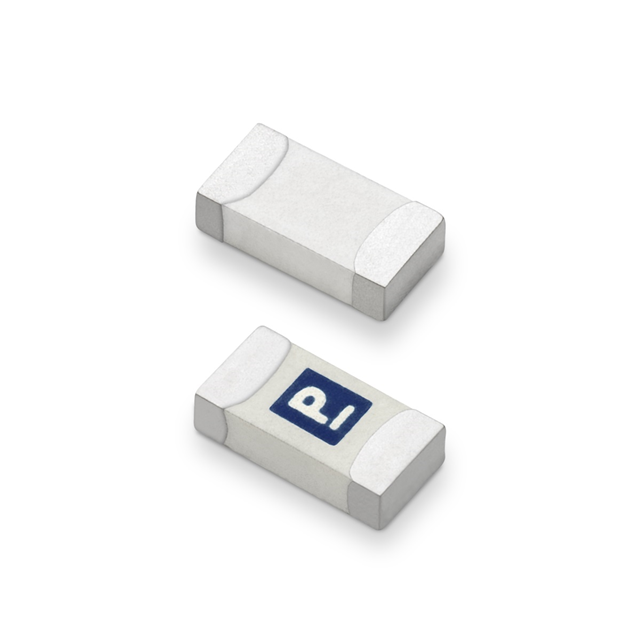

FUSE 24V HIGH I2T AUTOC 1206 TL 5.5A

Catalog

FUSE 24V HIGH I2T AUTOC 1206 TL 5.5A

Part	DC Cold Resistance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Response Time	Melting I²t	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Fuse Type
LITTELFUSE 040705.5WRA	0.014 Ohms	1206 (3216 Metric)	-55 C	150 °C	5.5 Amps	Surface Mount	24 V	24 V	50 A	Slow Blow	8.55	3.2 mm	1.63 mm	0.064 in	0.126 "	Board Mount (Cartridge Style Excluded)

Catalog

FUSE 24V HIGH I2T AUTOC 1206 TL 5.5A

Description

407A Series AECQ-Compliant fuse is specifically tested to cater to secondary circuit protection needs of compact auto electronics applications. The general design ensures excellent temperature stability and performance reliability. This high I²t fuse series is designed to have ultra high inrush current withstand capability to avoid nuisance fuse open.
