SFW26R Series

Catalog

CONN FPC BOTTOM 26POS 1MM R/A

Part	Actuator Color	Mating Cycles	Housing Color	Actuator Material	Voltage Rating	Number of Positions	FFC, FCB Thickness	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Cable End Type	Pitch	Pitch	Contact Finish	Termination	Locking Feature	Connector/Contact Type	Contact Material	Flat Flex Type	Material Flammability Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW26R-1STGE1LF	Black	20	Brown	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Tapered	1 mm	0.039 in	Gold	Solder	Slide Lock	Contacts Bottom	Phosphor Bronze	FPC	UL94 V-0
Amphenol ICC (FCI) SFW26R-1STE1HLF	Black	20	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	100 V	26		Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Straight Tapered	1 mm	0.039 in	Tin	Solder	Slide Lock	Contacts Bottom	Phosphor Bronze	FFC FPC	UL94 V-0	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW26R-2STAE1LF	Black	20	Brown	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26	0.3 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Straight Tapered	1 mm	0.039 in	Gold	Solder	Slide Lock	Contacts Top	Phosphor Bronze	FPC	UL94 V-0

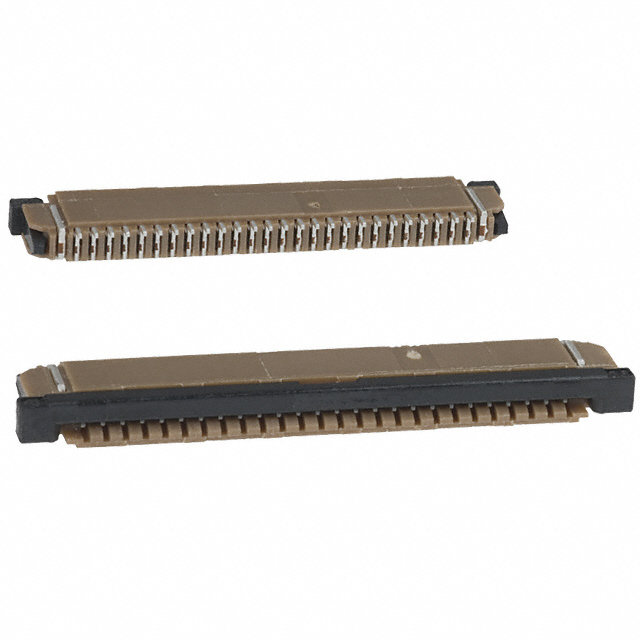

Amphenol ICC (FCI) SFW26R-1STE1	Black		Brown	Polyphenylene Sulfide (PPS) Glass Filled		26		Polyphenylene Sulfide (PPS) Glass Filled			Right Angle Surface Mount	0.106 in	2.7 mm	Straight Tapered	1 mm	0.039 in	Tin Alloy	Solder	Slide Lock	Contacts Bottom	Phosphor Bronze	FFC FPC	UL94 V-0	0.3 mm	0.33 mm

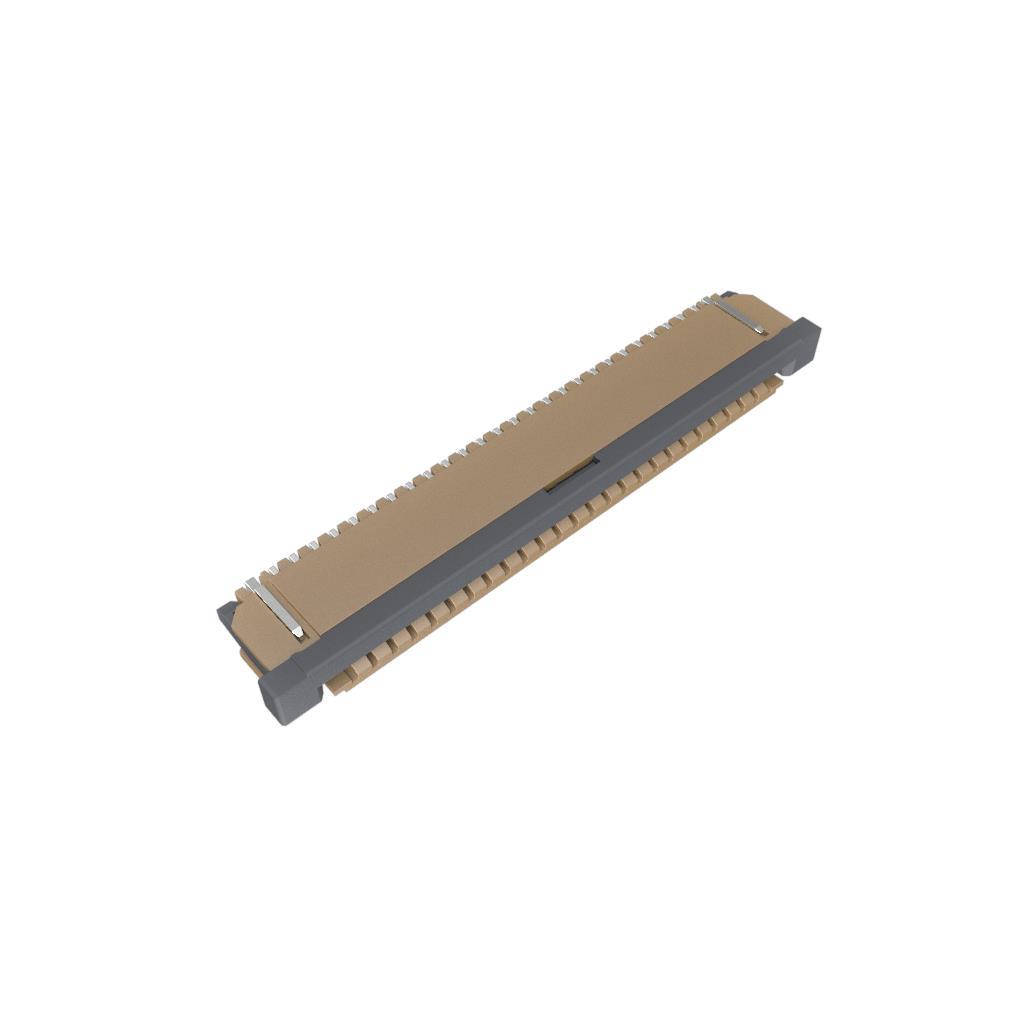

Amphenol ICC (FCI) SFW26R-1STAE1LF	Brown	20	Brown	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Tapered	1 mm	0.039 in	Gold	Solder	Slide Lock	Contacts Bottom	Phosphor Bronze	FPC	UL94 V-0
Amphenol ICC (FCI) SFW26R-3STAE1LF	Brown	20	Black	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Notched	1 mm	0.039 in	Gold	Solder	Slide Lock	Contacts Bottom	Phosphor Bronze	FPC	UL94 V-0
Amphenol ICC (FCI) SFW26R-6STE1LF	Black	10	Brown	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26		Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Straight Tapered	1 mm	0.039 in	Tin	Solder	Slide Lock	Contacts Top	Phosphor Bronze	CIC	UL94 V-0	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW26R-4STE1LF	Brown	20	Black	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26		Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Notched Tapered	1 mm	0.039 in	Tin	Solder	Slide Lock	Contacts Top	Phosphor Bronze	FFC FPC	UL94 V-0	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW26R-4STAE1LF	Brown	20	Black	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Notched	1 mm	0.039 in	Gold	Solder	Slide Lock	Contacts Top	Phosphor Bronze	FPC	UL94 V-0

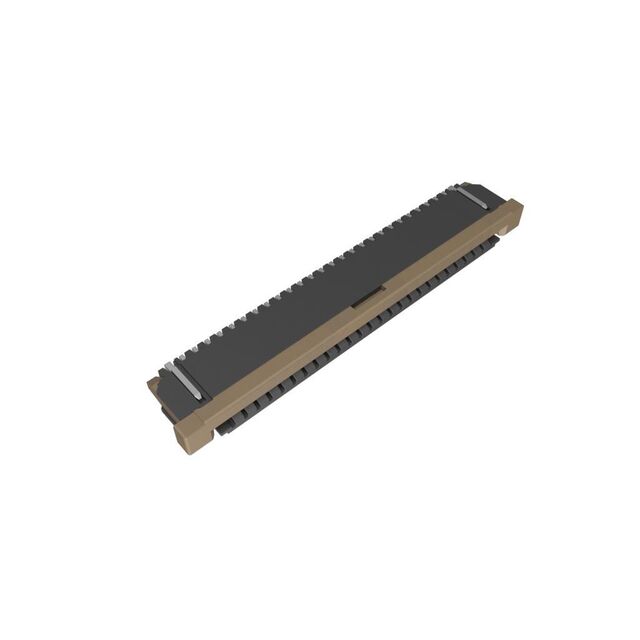

Amphenol ICC (FCI) SFW26R-3STE1LF	Black	20	Black	Polyphenylene Sulfide (PPS) Glass Filled	100 V	26	0.3 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Right Angle Surface Mount	0.106 in	2.7 mm	Straight Tapered	1 mm	0.039 in	Tin	Solder	Slide Lock	Contacts Bottom	Phosphor Bronze	FFC FPC	UL94 V-0
