THS4504 Series

Wideband, Low Distortion Fully Differential Amplifier with Shutdown

Catalog

Wideband, Low Distortion Fully Differential Amplifier with Shutdown

Part	Current - Output / Channel	Current - Supply	Slew Rate	-3db Bandwidth	Mounting Type	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product	Voltage - Supply Span (Max) [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Amplifier Type	Voltage - Input Offset	Package / Case [custom]	Package / Case	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplied Contents	Utilized IC / Part	Channels per IC	Board Type
Texas Instruments THS4504D	130 mA	16 mA	1800 V/µs	260 MHz	Surface Mount	4 µA	4.5 V	210 MHz	15 V	8-SOIC	3.9 mm	0.154 in	Differential	8-SOIC	85 °C	-40 °C	1	Differential	4 mV
Texas Instruments THS4504DGN	130 mA	16 mA	1800 V/µs	260 MHz	Surface Mount	4 µA	4.5 V	210 MHz	15 V	8-MSOP 8-TSSOP Exposed Pad			Differential	8-HVSSOP	85 °C	-40 °C	1	Differential	4 mV	0.118 in 3 mm
Texas Instruments THS4504DGNR		16 mA	1800 V/µs	260 MHz	Surface Mount	4 µA	4.5 V	210 MHz	15 V	8-MSOP 8-TSSOP Exposed Pad			Differential	8-HVSSOP	85 °C	-40 °C	1	Differential	4 mV	0.118 in 3 mm
Texas Instruments THS4504DGK	130 mA	16 mA	1800 V/µs	260 MHz	Surface Mount	4 µA	4.5 V	210 MHz	15 V	8-MSOP 8-TSSOP			Differential		85 °C	-40 °C	1	Differential	4 mV	0.118 in	3 mm
Texas Instruments THS4504DR		16 mA	1800 V/µs	260 MHz	Surface Mount	4 µA	4.5 V	210 MHz	15 V	8-SOIC	3.9 mm	0.154 in	Differential	8-SOIC	85 °C	-40 °C	1	Differential	4 mV

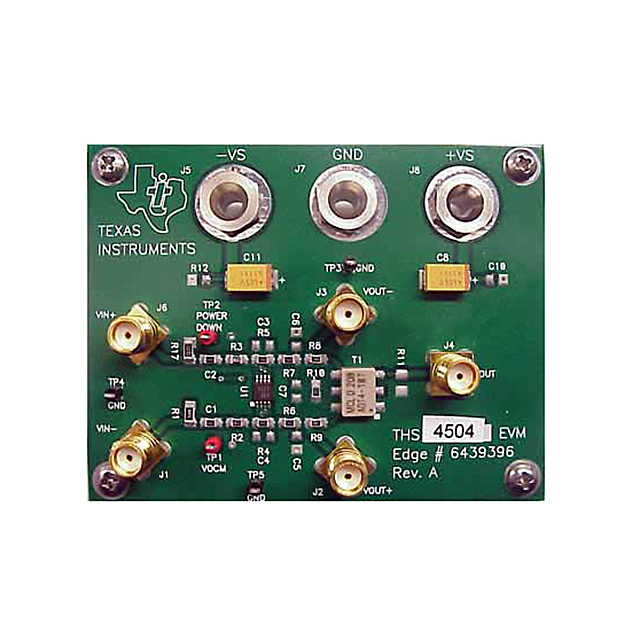

Texas Instruments THS4504EVM	130 mA		1800 V/µs	260 MHz									Differential					Differential				-2.25 V 4.5 V	7.5 V 15 V	Board(s)	THS4504	1 - Single	Fully Populated

Catalog

Wideband, Low Distortion Fully Differential Amplifier with Shutdown

Key Features

• Fully Differential ArchitectureBandwidth: 260 MHzSlew Rate: 1800 V/µsIMD3: -73 dBc at 30 MHzOIP3: 29 dBm at 30 MHzOutput Common-Mode ControlWide Power-Supply Voltage Range: 5 V, ±5 V, 12 V, 15 VInput Common-Mode Range Shifted to Include the Negative Power-Supply RailPower-Down Capability (THS4504)Evaluation Module AvailableAPPLICATIONSHigh Linearity Analog-to-Digital Converter PreamplifierWireless Communication Receiver ChainsSingle-Ended to Differential ConversionDifferential Line DriverActive Filtering of Differential SignalsPowerPAD is a trademark of Texas Instruments, Incorporated.All other trademarks are the property of their respective ownersFully Differential ArchitectureBandwidth: 260 MHzSlew Rate: 1800 V/µsIMD3: -73 dBc at 30 MHzOIP3: 29 dBm at 30 MHzOutput Common-Mode ControlWide Power-Supply Voltage Range: 5 V, ±5 V, 12 V, 15 VInput Common-Mode Range Shifted to Include the Negative Power-Supply RailPower-Down Capability (THS4504)Evaluation Module AvailableAPPLICATIONSHigh Linearity Analog-to-Digital Converter PreamplifierWireless Communication Receiver ChainsSingle-Ended to Differential ConversionDifferential Line DriverActive Filtering of Differential SignalsPowerPAD is a trademark of Texas Instruments, Incorporated.All other trademarks are the property of their respective owners

Description

The THS4504 and THS4505 are high-performance, fully differential amplifiers from Texas Instruments. The THS4504, featuring power-down capability, and the THS4505, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 12-bit operation through 40 MHz. Package options include the SOIC-8 and the MSOP-8 with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability. The THS4504 and THS4505 are high-performance, fully differential amplifiers from Texas Instruments. The THS4504, featuring power-down capability, and the THS4505, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 12-bit operation through 40 MHz. Package options include the SOIC-8 and the MSOP-8 with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability.
