SM40B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

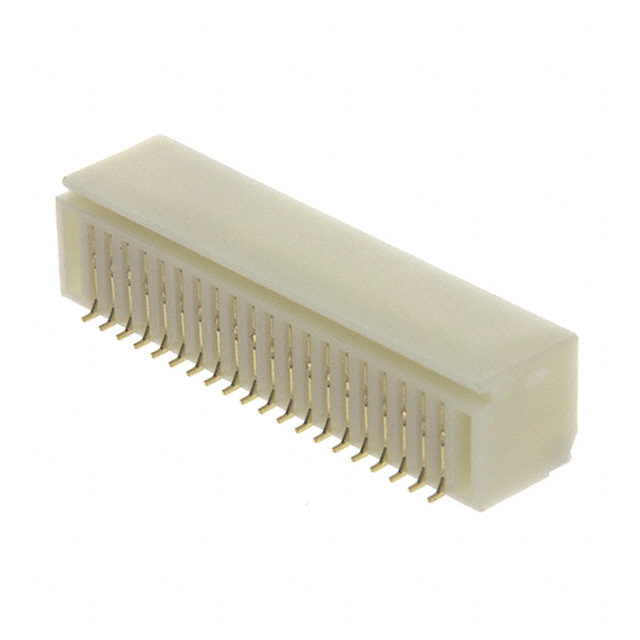

CONN HEADER SMD R/A 40POS 1MM
| Part | Fastening Type | Insulation Color | Contact Finish - Mating | Number of Positions | Shrouding | Voltage Rating | Material Flammability Rating | Contact Shape | Insulation Material | Features | Number of Positions Loaded | Contact Type | Contact Material | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type | Connector Type | Style | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Push-Pull | Natural | Gold | 40 | Shrouded - 4 Wall | 50 V | UL94 V-0 | Square | Glass Filled Nylon Polyamide (PA) | Pick and Place Solder Retention | All | Male Pin | Phosphor Bronze | 2 | 1 mm | 0.039 in | 85 °C | -25 °C | Solder | Right Angle Surface Mount | Header | Board to Cable/Wire | 0.217 in | 5.51 mm |
