M22-532 Series

Catalog

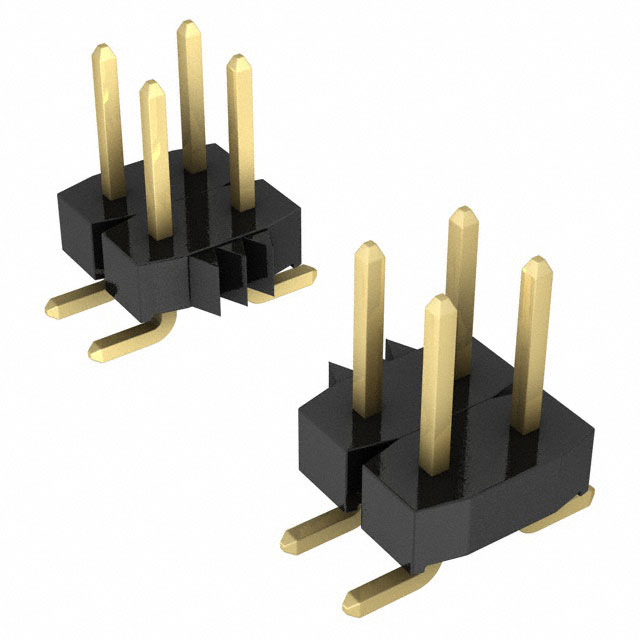

BOARD-TO-BOARD CONNECTOR, M22 SERIES, SURFACE MOUNT, HEADER, 6, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Number of Positions	Contact Finish - Mating	Fastening Type	Shrouding	Contact Material	Mounting Type	Number of Rows [custom]	Material Flammability Rating	Contact Shape	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish - Post
Harwin Inc. M22-5320305	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	6	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
Harwin Inc. M22-5320546R	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	10		Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A	Tin
Harwin Inc. M22-5320505	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	10	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
Harwin Inc. M22-5320305R	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	6	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
Harwin Inc. M22-5320605	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	12	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A

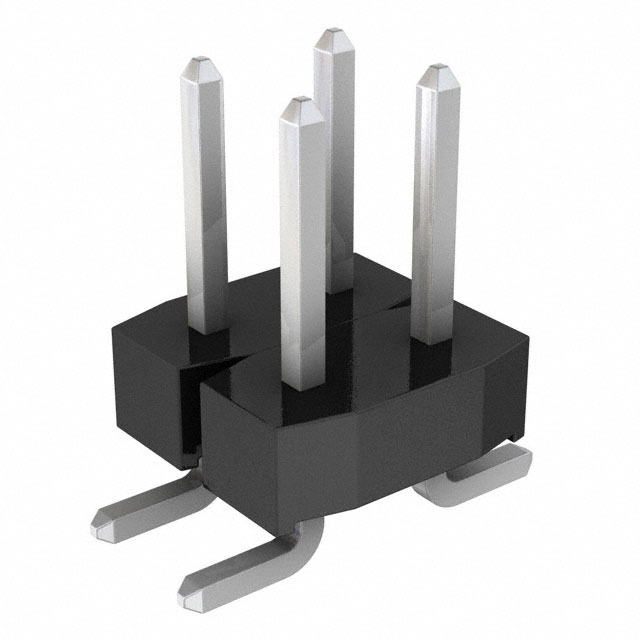

Harwin Inc. M22-5320246	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	4		Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A	Tin
Harwin Inc. M22-5320505R	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	10	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
Harwin Inc. M22-5322205	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	44	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
Harwin Inc. M22-5320605R	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	12	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
Harwin Inc. M22-5320405	4.6 mm 6.8 mm	-40 C	105 ░C	0.079 "	2 mm	Black	Header Cuttable	Solder	3.5 mm	0.138 in	0.059 in	1.5 mm	All	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Unshrouded	Phosphor Bronze	Surface Mount	2	UL94 V-0	Square	Male Pin	2 mm	0.079 in	1 A
