PPPC182 Series

Catalog

CONN HDR 36POS 0.1 GOLD PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Mounting Type	Number of Positions	Fastening Type	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Type	Contact Finish - Post	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Material Flammability Rating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

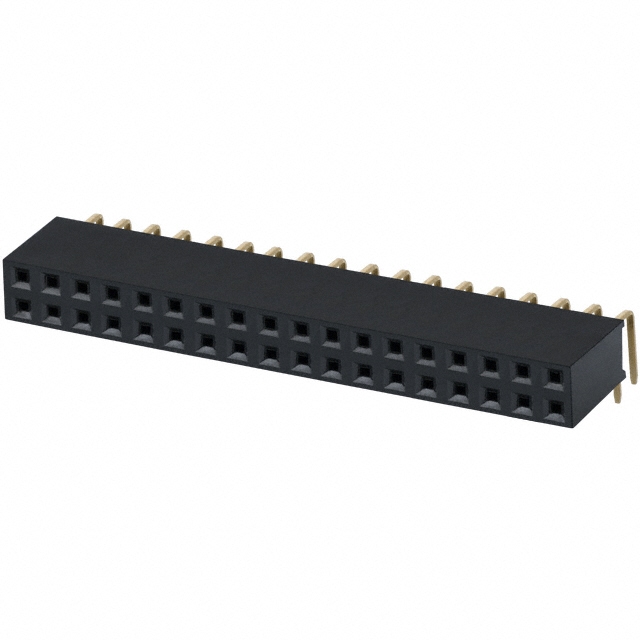

Sullins Connector Solutions PPPC182LJBN	Phosphor Bronze	Square	Polyester	Flash	Right Angle Through Hole	36	Push-Pull	Header	0.2 in	5.08 mm	Gold	Female Socket	Gold	2	-40 C	105 ░C	Black	UL94 V-0	Flash	0.1 "	2.54 mm	250 V	All	0.124 in	3.15 mm	3 A	0.1 in	2.54 mm	Solder

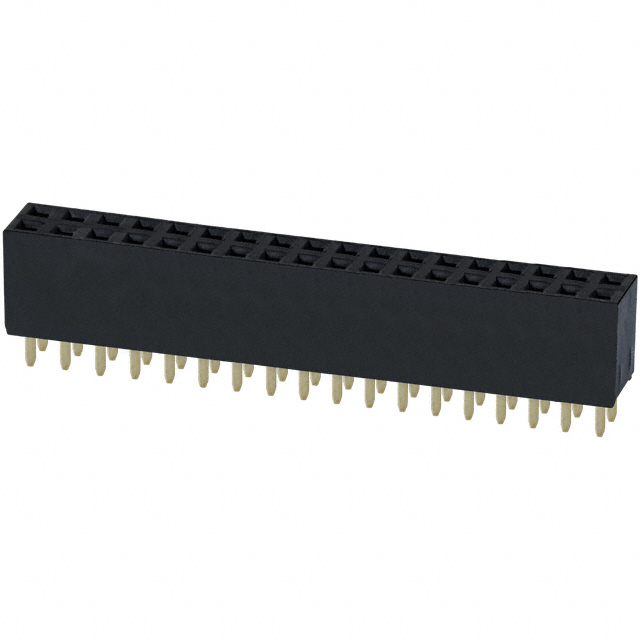

Sullins Connector Solutions PPPC182LFBN-RC	Phosphor Bronze	Square	Polyester	Flash	Through Hole	36	Push-Pull	Header			Gold	Female Socket	Gold	2	-40 C	105 ░C	Black	UL94 V-0	Flash	0.1 "	2.54 mm	250 V	All			3 A	0.1 in	2.54 mm	Solder	0.126 "	3.2 mm	0.335 "	8.51 mm

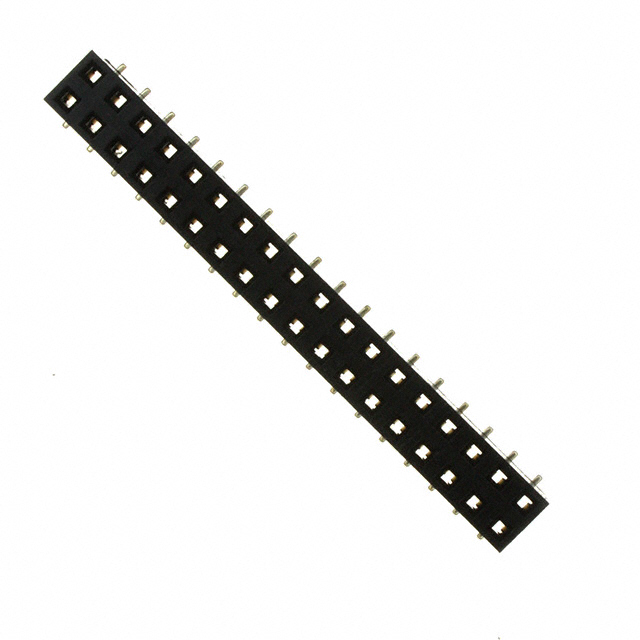

Sullins Connector Solutions PPPC182KFMS	Phosphor Bronze	Square	Polyester	Flash	Surface Mount	36	Push-Pull	Header	0.299 "		Gold	Female Socket	Gold	2	-40 C	125 °C	Black	UL94 V-0	Flash	0.1 "	2.54 mm	250 V	All			3 A	0.1 in	2.54 mm	Solder				7.6 mm
