ADRF5026 Series

Catalog

EVAL BOARD

Part	For Use With/Related Products	Supplied Contents	Frequency (Max)	Frequency (Min)	Utilized IC / Part	Contents	Type	Frequency Range (Min)	Frequency Range (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Impedance	IIP3	Circuit	P1dB	Insertion Loss	Package Name	Package Length	Package Width	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package / Case	Test Frequency	RF Type	Isolation	Topology	Mounting Type
Analog Devices Inc./Maxim Integrated ADRF5026-EVALZ-240	ADRF5026	Board(s)	44 GHz	100 MHz	ADRF5026	Board	SPDT Switch

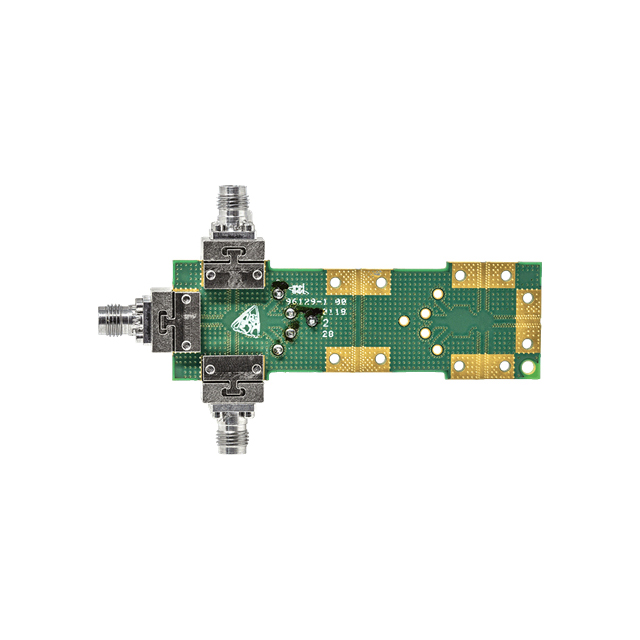

Analog Devices Inc./Maxim Integrated ADRF5026-EVALZ-292	ADRF5026	Board(s)	44 GHz	100 MHz	ADRF5026	Board	SPDT Switch
Analog Devices Inc./Maxim Integrated ADRF5026SCCZ-EPR7								100 MHz	44 GHz	-55 °C	105 °C	50 Ohm	53 dBm	SPDT	27 dBm	3.8 dB	20-LGA	3 mm	3 mm	3.15 V	3.45 V	20-WFLGA Exposed Pad	44 GHz	Cellular Radar VSAT	45 dB	Absorptive	Surface Mount
Analog Devices Inc./Maxim Integrated ADRF5026BCCZN-R7								100 MHz	44 GHz	-40 °C	105 °C	50 Ohm	53 dBm	SPDT	27 dBm	3.8 dB	20-LGA	3 mm	3 mm	3.15 V	3.45 V	20-WFLGA Exposed Pad	44 GHz	VSAT	45 dB	Absorptive	Surface Mount
Analog Devices Inc./Maxim Integrated ADRF5026BCCZN								100 MHz	44 GHz	-40 °C	105 °C	50 Ohm	53 dBm	SPDT	27 dBm	3.8 dB	20-LGA	3 mm	3 mm	3.15 V	3.45 V	20-WFLGA Exposed Pad	44 GHz	VSAT	45 dB	Absorptive	Surface Mount
Analog Devices Inc./Maxim Integrated ADRF5026SCCZ-EP								100 MHz	44 GHz	-55 °C	105 °C	50 Ohm	53 dBm	SPDT	27 dBm	3.8 dB	20-LGA	3 mm	3 mm	3.15 V	3.45 V	20-WFLGA Exposed Pad	44 GHz	Cellular Radar VSAT	45 dB	Absorptive	Surface Mount
