966443 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

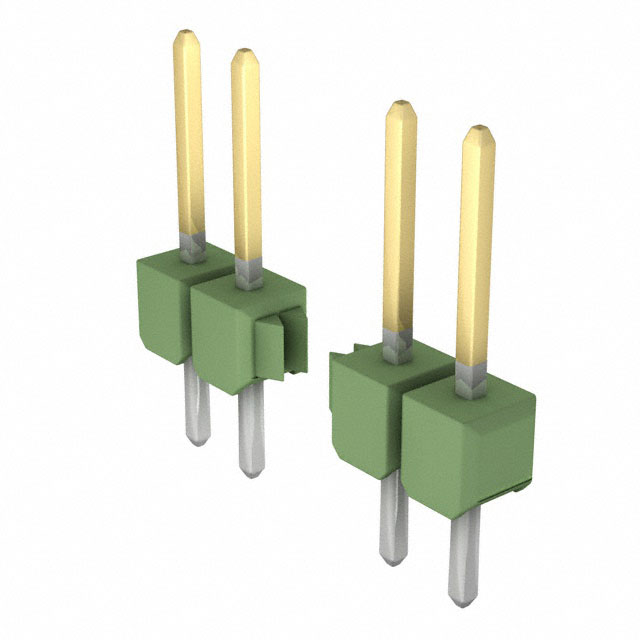

CONN HEADER VERT 2POS 2.54MM
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Insulation Material | Fastening Type | Contact Length - Mating | Contact Length - Mating | Mounting Type | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Type | Contact Finish - Post | Insulation Color | Termination | Contact Shape | Shrouding | Connector Type | Style | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 118.1 µin | 3 µm | 2 | 0.126 " | 3.2 mm | Copper Alloy | Polybutylene Terephthalate (PBT) | Push-Pull | 0.228 in | 5.8 mm | Through Hole | 1 | 31.5 µin | 0.8 µm | Gold | Male Pin | Tin-Lead | Green | Solder | Square | Unshrouded | Header Breakaway | Board to Board Cable | 11.81 mm | 0.465 in | 0.1 " | 2.54 mm | All |
 TE Connectivity AMP Connectors | 118.1 µin | 3 µm | 10 | 0.126 " | 3.2 mm | Copper Alloy | Polybutylene Terephthalate (PBT) | Push-Pull | 0.228 in | 5.8 mm | Through Hole | 1 | 31.5 µin | 0.8 µm | Gold | Male Pin | Tin | Green | Solder | Square | Unshrouded | Header Breakaway | Board to Board Cable | 11.81 mm | 0.465 in | 0.1 " | 2.54 mm | All |
 TE Connectivity AMP Connectors | 118.1 µin | 3 µm | 10 | 0.126 " | 3.2 mm | Copper Alloy | Polybutylene Terephthalate (PBT) | Push-Pull | 0.228 in | 5.8 mm | Through Hole | 1 | 31.5 µin | 0.8 µm | Gold | Male Pin | Tin-Lead | Green | Solder | Square | Unshrouded | Header Breakaway | Board to Board Cable | 11.81 mm | 0.465 in | 0.1 " | 2.54 mm | All |
TE Connectivity AMP Connectors | 118.1 µin | 3 µm | 6 | 0.126 " | 3.2 mm | Copper Alloy | Polybutylene Terephthalate (PBT) | Push-Pull | 0.228 in | 5.8 mm | Through Hole | 1 | 31.5 µin | 0.8 µm | Gold | Male Pin | Tin-Lead | Green | Solder | Square | Unshrouded | Header Breakaway | Board to Board Cable | 11.81 mm | 0.465 in | 0.1 " | 2.54 mm | All |
TE Connectivity AMP Connectors | 118.1 µin | 3 µm | 50 | 0.126 " | 3.2 mm | Copper Alloy | Polybutylene Terephthalate (PBT) | Push-Pull | 0.228 in | 5.8 mm | Through Hole | 1 | 31.5 µin | 0.8 µm | Gold | Male Pin | Tin | Green | Solder | Square | Unshrouded | Header Breakaway | Board to Board Cable | 11.81 mm | 0.465 in | 0.1 " | 2.54 mm | All |
TE Connectivity AMP Connectors | 118.1 µin | 3 µm | 4 | 0.126 " | 3.2 mm | Copper Alloy | Polybutylene Terephthalate (PBT) | Push-Pull | 0.228 in | 5.8 mm | Through Hole | 1 | 31.5 µin | 0.8 µm | Gold | Male Pin | Tin-Lead | Green | Solder | Square | Unshrouded | Header Breakaway | Board to Board Cable | 11.81 mm | 0.465 in | 0.1 " | 2.54 mm | All |
