8G1016 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

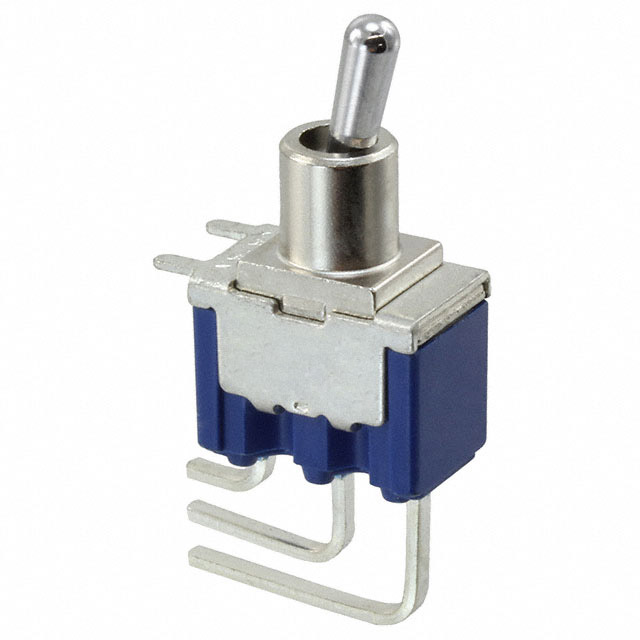

30V 125V SPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS
| Part | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Bushing Thread | Features | Actuator Length [x] | Electrical Life | Voltage Rating - DC | Actuator Type | Mounting Type | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 4 A 6 A | 125 V | On-On | Unthreaded | Washable | 6.8 mm | 50000 Cycles | 30 V | Standard Round | Right Angle Through Hole Vertical | Non-Illuminated | -25 °C | 80 C | SPDT | PC Pin |
