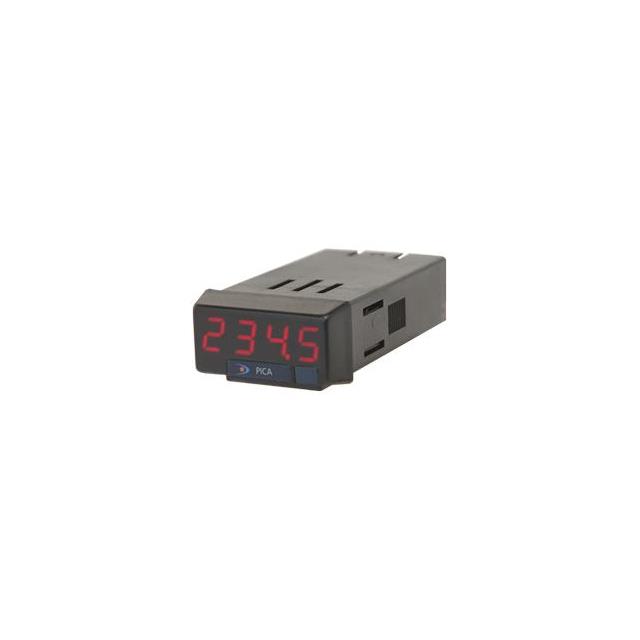

PICA-E Series
Manufacturer: DITEL
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC AMMETER/VOLTMETER, 1/32
| Part | Display Type | Operating Temperature (Max) | Operating Temperature (Min) | Measuring Range (Current) Maximum | Measuring Range (Voltage) Minimum | Measuring Range (Voltage) Maximum | Measuring Range (Current) Minimum | Ingress Protection IP Rating | Ingress Protection Description | Termination Style | Number of Characters Per Row | Mounting Type | Measuring Type | Display Characters - Height | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 2 Maximum) | Type | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DITEL | LCD - Red Characters LED - Red Characters | 60 °C | -10 °C | 5 A | 100 V | 600 V | 1 A | IP65 | Dust Tight Water Resistant | Connector | 4 characters | Panel Mount | Current Voltage | 0.394 in | 53 VAC | 21 VAC | 10.5 VDC | 70 VDC | Ammeter Voltmeter | 22 mm | Rectangular | 45 mm |
