45216 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Number of Rows [custom]	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Termination	Style	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Shrouding	Connector Type	Contact Shape	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating
3M Electronic Specialty 45216-620230	200 µin	5.08 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	2	125 VDC	0.05 in	1.27 mm	Tin	16	-65 ░C	125 °C	Keying Slot	Copper Alloy	Liquid Crystal Polymer (LCP)	0.76 Ám	30 Áin	5.65 mm	0.222 in	1.27 mm	0.05 in	Solder	Board to Cable/Wire	Through Hole	All	Gold	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Header	Square	Male Pin	UL94 V-0	2.4 mm	0.094 in
3M Electronic Specialty 45216-200200	100 µin	2.54 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	2	125 VAC 125 VDC	0.05 in	1.27 mm	Tin	16	-65 ░C	125 °C	Keying Slot Pick and Place	Copper Alloy	Liquid Crystal Polymer (LCP)			5.64 mm 5.65 mm	0.222 in	1.27 mm	0.05 in	Solder	Board to Cable/Wire	Surface Mount	All	Gold	Push-Pull	Shrouded - 4 Wall	Header	Square	Male Pin	UL94 V-0			Black	Flash	0.098 in	2.5 mm
3M Electronic Specialty 45216-220230	200 µin	5.08 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	2	125 VDC	0.05 in	1.27 mm	Tin	16	-65 ░C	125 °C	Keying Slot Pick and Place	Copper Alloy	Liquid Crystal Polymer (LCP)	0.76 Ám	30 Áin	5.65 mm	0.222 in	1.27 mm	0.05 in	Solder	Board to Cable/Wire	Surface Mount	All	Gold	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Header	Square	Male Pin	UL94 V-0

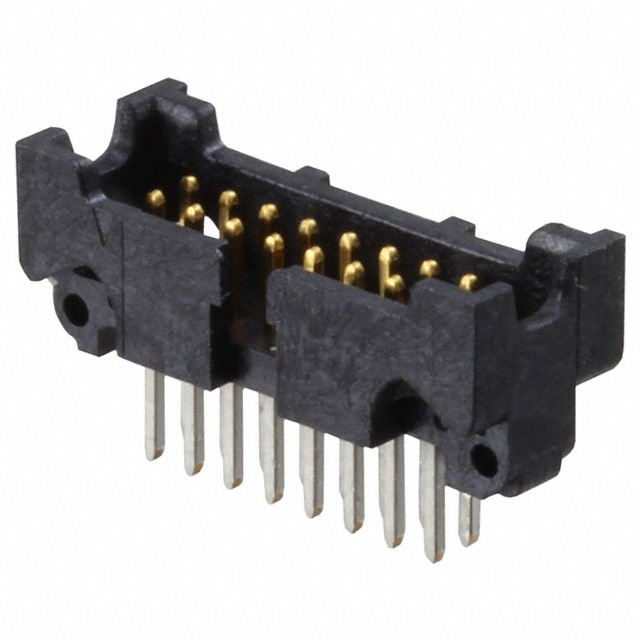

3M Electronic Specialty 45216-600230	200 µin	5.08 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	2	125 VDC	0.05 in	1.27 mm	Tin	16	-65 ░C	125 °C	Keying Slot	Copper Alloy	Liquid Crystal Polymer (LCP)	0.76 Ám	30 Áin	5.65 mm	0.222 in	1.27 mm	0.05 in	Solder	Board to Cable/Wire	Through Hole	All	Gold	Push-Pull	Shrouded - 4 Wall	Header	Square	Male Pin	UL94 V-0	2.4 mm	0.094 in
3M Electronic Specialty 45216-600200	100 µin	2.54 µm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	2	125 VDC	0.05 in	1.27 mm	Tin	16	-65 ░C	125 °C	Keying Slot	Copper Alloy	Liquid Crystal Polymer (LCP)			5.65 mm	0.222 in	1.27 mm	0.05 in	Solder	Board to Cable/Wire	Through Hole	All	Gold	Push-Pull	Shrouded - 4 Wall	Header	Square	Male Pin	UL94 V-0	2.4 mm	0.094 in		Flash
