9V28026 Series
Manufacturer: Belden Inc.
Beta
⌘K

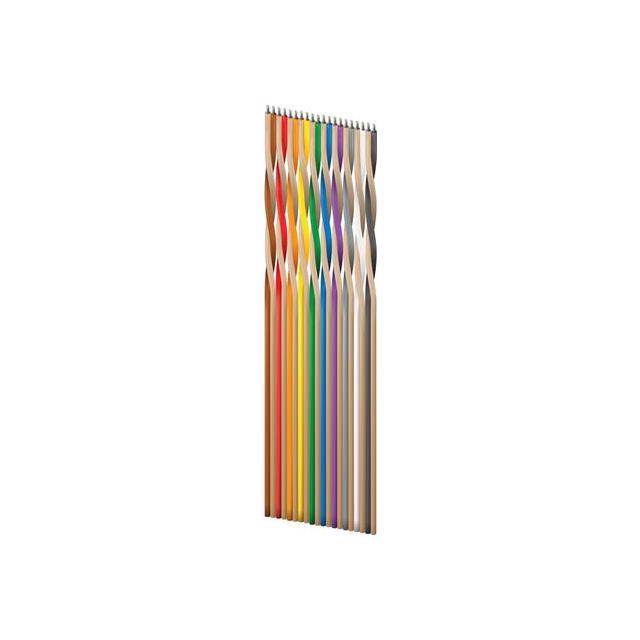

CBL RIBN 26COND TWIST-PAIR 100'
| Part | Current Rating (Amps) | Insulation Resistance | Conductor Material | Pitch | Pitch | Ribbon Width [custom] | Ribbon Width [custom] | Ribbon Thickness | Ribbon Thickness | Voltage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Cable Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 1 A | 10 GOhm | Copper Tinned | 0.05 in | 1.27 mm | 33.68 mm | 1.326 in | 0.08 in | 2.03 mm | 300 VDC | Poly-Vinyl Chloride (PVC) | 36 AWG | 7 Strands | 28 AWG | Flat Twisted Pair | Multiple | -20 ░C | 105 ░C | Unshielded | 26 | 100 ' | 30.48 m |
