EGJ.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT MALE 5POS GOLD CRIMP

Part	Fastening Type	Mounting Type	Shielding	Shell Material	Shell Finish	Termination	Mounting Feature	Shell Size - Insert	Contact Material	Color	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Number of Positions	Material Flammability Rating	Orientation [custom]	Connector Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Primary Material	Note	Housing Color
LEMO EGJ.1B.305.CYC	Push-Pull	Panel Mount	Shielded	Brass	Chrome	Crimp	Bulkhead - Rear Side Nut	305	Brass	Silver	9 A	Gold	IP50 - Dust Protected	5	UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal

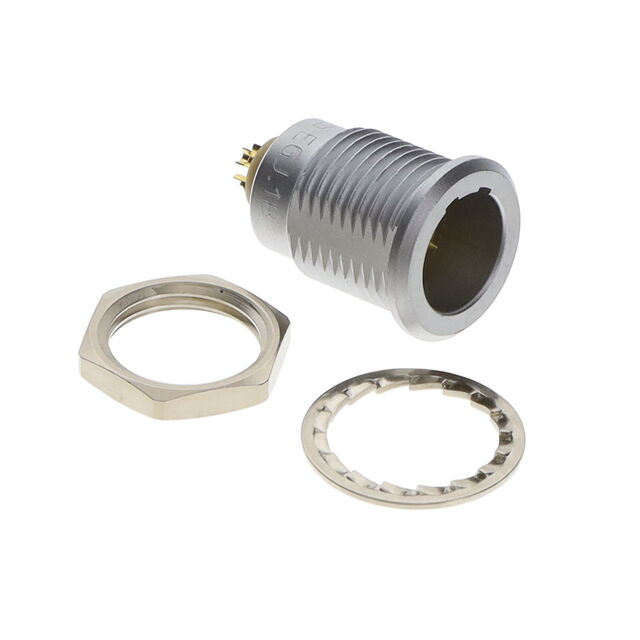

LEMO EGJ.1B.304.CLA	Push-Pull	Panel Mount	Shielded	Brass	Chrome		Bulkhead - Rear Side Nut	304	Brass	Silver	10 A	Gold	IP50 - Dust Protected	4	UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal
LEMO EGJ.1B.303.CLD	Push-Pull	Panel Mount Through Hole	Shielded	Brass	Chrome	Solder	Bulkhead - Rear Side Nut	303	Brass	Silver	12 Amps	Gold	IP50 - Dust Protected		UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal
LEMO EGJ.1B.200.LC	Detent Lock Push-Pull	Panel Mount	Shielded	Aluminum Alloy	Anodized		Bulkhead - Rear Side Nut						IP50 - Dust Protected			J	Insert Shell		-55 C	250 °C				Contacts Not Included; Insert Not Included	Black
LEMO EGJ.1B.314.CLA	Push-Pull	Panel Mount	Shielded	Brass	Chrome		Bulkhead - Rear Side Nut	314	Brass	Silver	2 A	Gold	IP50 - Dust Protected	14	UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal
LEMO EGJ.1B.731.CJA	Push-Pull	Panel Mount	Shielded	Brass	Chrome		Bulkhead - Rear Side Nut	731	Brass	Silver	12 Amps	Gold	IP50 - Dust Protected		UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal
LEMO EGJ.1B.308.CLA	Push-Pull	Panel Mount	Shielded	Brass	Chrome		Bulkhead - Rear Side Nut	308	Brass	Silver	5 A	Gold	IP50 - Dust Protected	8	UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal
LEMO EGJ.1B.308.CYC	Push-Pull	Panel Mount	Shielded	Brass	Chrome	Crimp	Bulkhead - Rear Side Nut	308	Brass	Silver	5 A	Gold	IP50 - Dust Protected	8	UL94 V-0	J	Receptacle Male Pins	Polyetheretherketone (PEEK)	-55 C	250 °C	39.4 µin	1 µm	Metal
