MMF- Mini Series

Manufacturer: YAGEO

Catalog

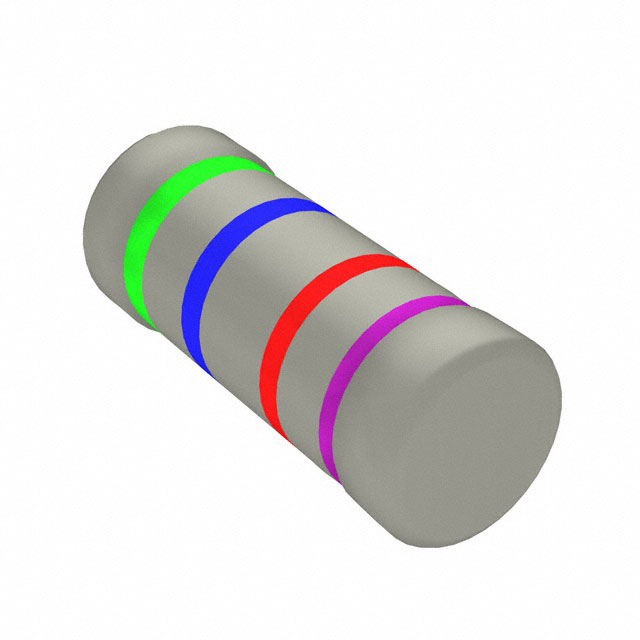

MELF RESISTORS 5.6 KOHMS 1/4 W 0.1 % AEC-Q200 MINIATURE VERSION

Part	Power (Watts)	Power (Watts)	Supplier Device Package	Resistance	Temperature Coefficient	Number of Terminations [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [y]	Composition	Tolerance
YAGEO MMF25SBRD5K6	0.25 W	0.25 W	MELF	5.6 kOhms	25 ppm/°C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	0.1 %
YAGEO MMF25SFRE1K	0.25 W	0.25 W	MELF	1000 Ohms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE240K	0.25 W	0.25 W	MELF	240 kOhms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE93K1	0.25 W	0.25 W	MELF	93.1 kOhms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE100R	0.25 W	0.25 W	MELF	100 Ohms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE300R	0.25 W	0.25 W	MELF	300 Ohms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE39R	0.25 W	0.25 W	MELF	39 Ohms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE3R9	0.25 W	0.25 W	MELF	3.9 Ohms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE20R	0.25 W	0.25 W	MELF	20 Ohms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
YAGEO MMF25SFRE154K	0.25 W	0.25 W	MELF	154 kOhms	50 ppm/░C	2	MELF 0204	155 C	-55 C	0.138 in 1.4 mm	0.055 in	3.5 mm	Metal Film	1 %
