R60520 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

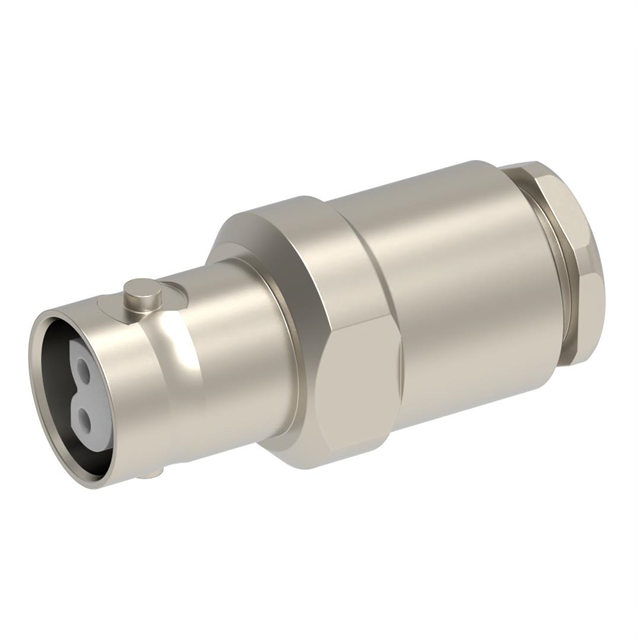

BR2 / STRAIGHT JACK CLAMP TYPE F
| Part | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Connector Type | Connector Style | Number of Ports | Fastening Type | Housing Color | Contact Termination | Shield Termination | Mounting Type | Impedance | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | 500 | -40 C | 100 °C | Diallyl Phthalate (DAP) Nylon Polyamide (PA) | Brass | Female Socket Jack | BR2 | 1 | Bayonet Lock | Silver | Solder | Clamp | Free Hanging (In-Line) | 80 Ohms | 500 MHz | Twinaxial 6 |
