GXA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 560UF 450V

Part	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Lifetime @ Temp.	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Polarization	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension
Chemi-Con EGXA451VSN561MA50L	560 µF	125 °C	-40 C	Radial Can - Snap-In	Through Hole	3000 Hrs	General Purpose	2.13 A	2.067 in	52.5 mm	20 %	0.394 in	10 mm	1.378 "	35 mm	3.0459 A	Polar	450 V

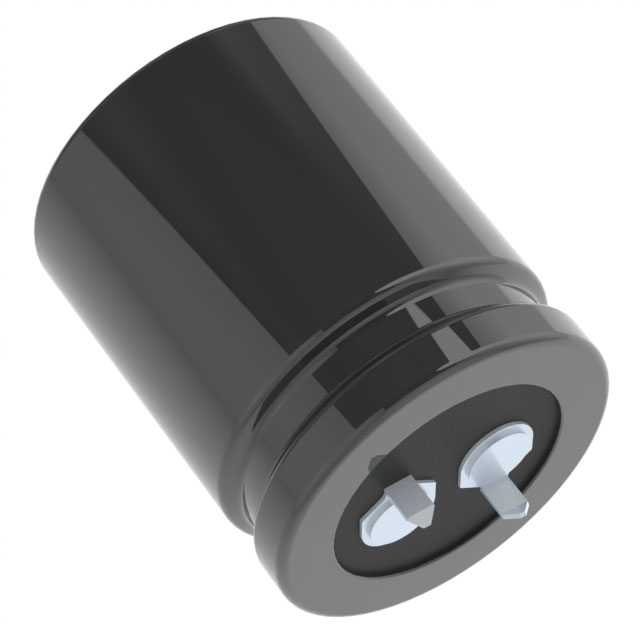

Chemi-Con EGXA451VSN271MR35L	270 µF	125 °C	-40 C	Radial Can - Snap-In	Through Hole	3000 Hrs	General Purpose	1.27 A			20 %	0.394 in	10 mm	1.181 "		1.8161 A	Polar	450 V	1.476 in	37.5 mm	30 mm

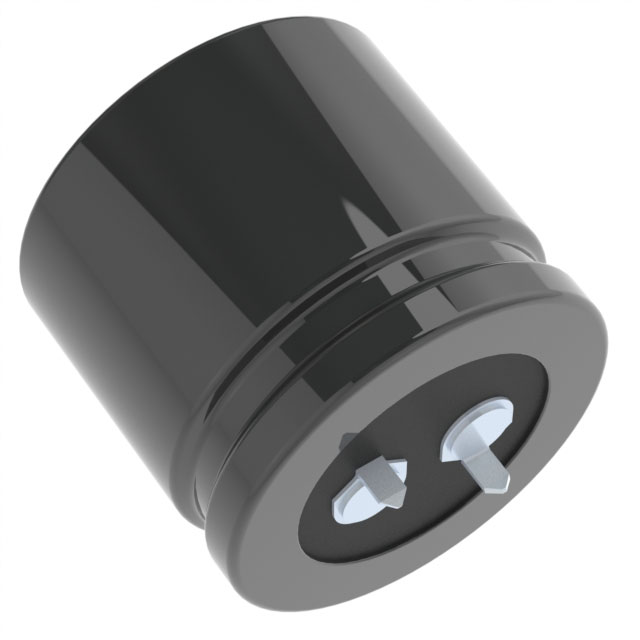

Chemi-Con EGXA451VSN271MA30L	270 µF	125 °C	-40 C	Radial Can - Snap-In	Through Hole	3000 Hrs	General Purpose	1.34 A	1.28 in	32.5 mm	20 %	0.394 in	10 mm	1.378 "	35 mm	1.9162 A	Polar	450 V
