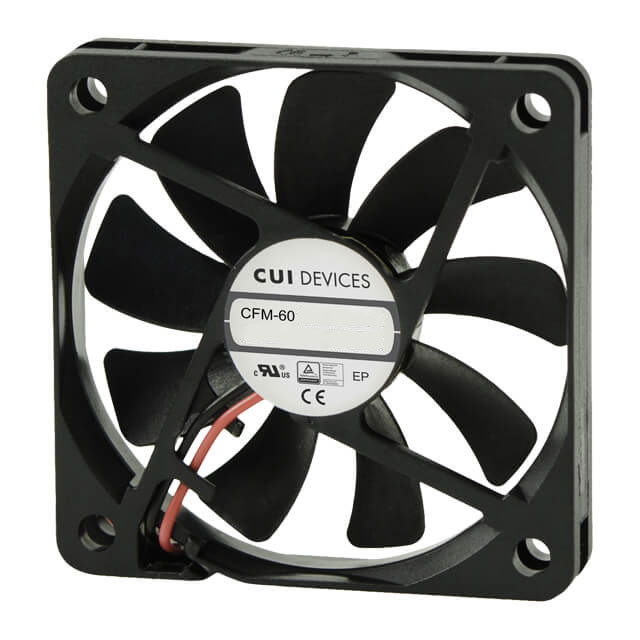

CFM-6015 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

FAN AXIAL 60X15MM 12VDC WIRE

Part	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Termination	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	RPM	Voltage - Rated	Material - Blade	Air Flow	Air Flow	Noise	Approval Agency	Fan Type	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Static Pressure
Same Sky (Formerly CUI Devices) CFM-6015V-139-292-20	15 mm	60 mm	60 mm	Auto Restart Speed Sensor (Tach)	3 Wire Leads	70000 Hrs	4.5 V	13.8 VDC	0.078 lb	35.38 g	3900 RPM	12 VDC	Polybutylene Terephthalate (PBT)	0.638 mł/min	22.8 CFM	29.2 dB(A)	CE cURus TUV	Tubeaxial	0.079 A	0.14 in H2O	34.9 Pa	70 °C	-10 °C
Same Sky (Formerly CUI Devices) CFM-6015V-247-342-11	15 mm	60 mm	60 mm	Auto Restart Locked Rotor Sensor	3 Wire Leads				0.078 lb	35.38 g		24 VDC		0.739 mł/min	26.4 CFM	34.2 dB(A)	CE cURus TUV	Tubeaxial		0.18 in H2O	44.8 Pa	70 °C	-10 °C	2.09 W
Same Sky (Formerly CUI Devices) CFM-6015V-130-213-20	15 mm	60 mm	60 mm	Auto Restart Speed Sensor (Tach)	3 Wire Leads				0.078 lb	35.38 g	3000 RPM	12 VDC		0.493 m³/min	17.6 CFM	21.3 dB(A)	CE cURus TUV	Tubeaxial		0.12 in H2O	29.9 Pa	70 °C	-10 °C	700 mW
Same Sky (Formerly CUI Devices) CFM-6015V-154-362-11	15 mm	60 mm	60 mm	Auto Restart Locked Rotor Sensor	3 Wire Leads	70000 Hrs	4.5 V	13.8 VDC	0.078 lb	35.38 g	5400 RPM	12 VDC	Polybutylene Terephthalate (PBT)	0.851 mł/min	30.4 CFM	36.2 dB(A)	CE cURus TUV	Tubeaxial	0.213 A	0.22 in H2O	54.8 Pa	70 °C	-10 °C	2.56 W
Same Sky (Formerly CUI Devices) CFM-6015V-154-362-11	15 mm	60 mm	60 mm	Auto Restart Locked Rotor Sensor	3 Wire Leads				0.078 lb	35.38 g	5400 RPM	12 VDC		0.851 mł/min	30.4 CFM	36.2 dB(A)	CE cURus TUV	Tubeaxial		0.22 in H2O	54.8 Pa	70 °C	-10 °C	2.56 W
Same Sky (Formerly CUI Devices) CFM-6015V-147-342-11	15 mm	60 mm	60 mm	Auto Restart Locked Rotor Sensor	3 Wire Leads	70000 Hrs	4.5 V	13.8 VDC	0.078 lb	35.38 g		12 VDC	Polybutylene Terephthalate (PBT)	0.739 mł/min	26.4 CFM	34.2 dB(A)	CE cURus TUV	Tubeaxial	0.147 A	0.18 in H2O	44.8 Pa	70 °C	-10 °C
Same Sky (Formerly CUI Devices) CFM-6015V-139-292-20	15 mm	60 mm	60 mm	Auto Restart Speed Sensor (Tach)	3 Wire Leads				0.078 lb	35.38 g	3900 RPM	12 VDC		0.638 mł/min	22.8 CFM	29.2 dB(A)	CE cURus TUV	Tubeaxial		0.14 in H2O	34.9 Pa	70 °C	-10 °C
Same Sky (Formerly CUI Devices) CFM-6015V-130-213-20	15 mm	60 mm	60 mm	Auto Restart Speed Sensor (Tach)	3 Wire Leads	70000 Hrs	4.5 V	13.8 VDC	0.078 lb	35.38 g	3000 RPM	12 VDC	Polybutylene Terephthalate (PBT)	0.493 m³/min	17.6 CFM	21.3 dB(A)	CE cURus TUV	Tubeaxial	58 mA	0.12 in H2O	29.9 Pa	70 °C	-10 °C	700 mW
Same Sky (Formerly CUI Devices) CFM-6015V-130-213	15 mm	60 mm	60 mm	Auto Restart	2 Wire Leads	70000 Hrs	4.5 V	13.8 VDC	0.078 lb	35.38 g	3000 RPM	12 VDC	Polybutylene Terephthalate (PBT)	0.493 m³/min	17.6 CFM	21.3 dB(A)	CE cURus TUV	Tubeaxial	58 mA	0.12 in H2O	29.9 Pa	70 °C	-10 °C	700 mW
Same Sky (Formerly CUI Devices) CFM-6015V-122-145	15 mm	60 mm	60 mm	Auto Restart	2 Wire Leads	70000 Hrs	4.5 V	13.8 VDC	0.078 lb	35.38 g	2200 RPM	12 VDC	Polybutylene Terephthalate (PBT)			14.5 dB(A)	CE cURus TUV	Tubeaxial	29 mA		10 Pa	70 °C	-10 °C	350 mW	0.04 in H2O
